What are Flowlines in Oil and Gas? Flowlines vs Pipelines Explained

Defining Flowlines vs Pipelines in Midstream Infrastructure

To master the distinction of Flowlines vs Pipelines, one must first look at the direction of the molecular journey. In the upstream sector, a flowline is the very first arterial connection in the production network. It is the conduit that links a single wellhead to a gathering manifold, separator, or storage tank. Because the fluid exiting the well is "raw," it often contains a turbulent mixture of hydrocarbons, saline formation water, and abrasive solids like sand. This necessitates a design focus on erosion-corrosion resistance and the ability to handle fluctuating pressures that would destabilize a standard transmission line.

Conversely, a pipeline—specifically a transmission or trunk line—operates as the heavy-duty logistics arm of the industry. Once the raw fluid from the flowline has been processed, dehydrated, and "sweetened" at a central facility, it enters the pipeline. These systems are governed by strict purity specifications to protect the integrity of the long-distance network. While a flowline might only span a few hundred meters or several kilometers within a single field, a pipeline can traverse entire continents, necessitating a different regulatory framework under the ASME B31.4 Standard for liquids or B31.8 for gas.

Top 9 Design Considerations for Flowlines vs Pipelines

1. Temperature and Pressure of Flowlines

The thermodynamics of Flowlines vs Pipelines are starkly different. Flowlines receive fluids at reservoir temperatures, which can exceed 100°C (212°F). This extreme heat causes significant longitudinal expansion, which must be managed to prevent "upheaval buckling" if buried, or flange leaks at the wellhead. In contrast, transmission pipelines usually operate near ambient soil or water temperatures because the fluid has been cooled during processing. Pressure management is equally critical; flowlines must be rated for the Full Wellhead Shut-In Pressure (WHSIP) to ensure safety in the event of a downstream blockage.

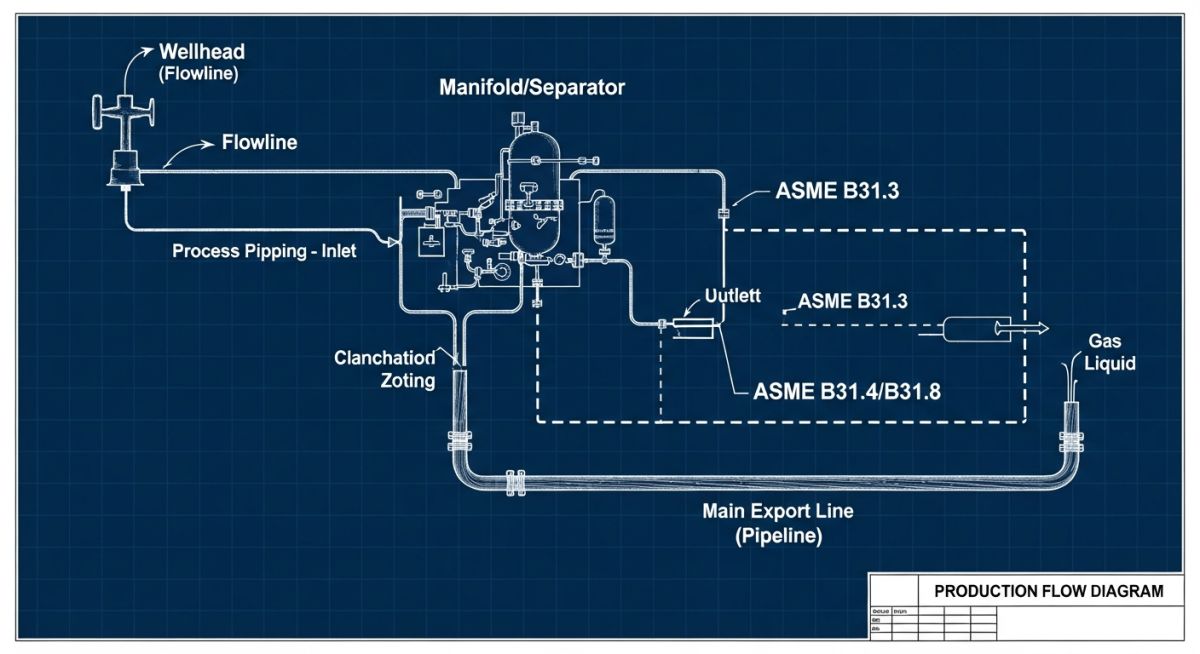

2. Flowline Design Codes (ASME B31.3 vs B31.4/B31.8)

One of the most debated topics in Flowlines vs Pipelines engineering is code selection. Many operators choose ASME B31.3 (Process Piping) for flowlines because it provides a more conservative approach to wall thickness and fatigue analysis, which is vital for the multiphase, slug-prone flow of raw wells. Once the fluid passes the "fence-line" of a processing plant and enters the commercial transport phase, the jurisdiction shifts to B31.4 or B31.8, which are optimized for long-distance efficiency and lower safety factors in remote, non-populated areas.

3. Mechanical Strength and Material Selection

Material selection in Flowlines vs Pipelines is driven by chemistry. Flowlines often require exotic alloys or Corrosion Resistant Alloys (CRA) like Duplex Stainless Steel or internal plastic liners to survive the aggressive H2S (Sour Service) and CO2 environments of raw production. Pipelines, carrying stabilized and inhibited products, typically utilize high-strength carbon steel (API 5L X65 or X70). The mechanical strength of a flowline must also account for the physical impact of "slugs"—large masses of liquid followed by high-velocity gas—which create significant momentum changes at every 90-degree bend.

4. Flowline Routing and Topography

When evaluating Flowlines vs Pipelines routing, flowlines are slaves to the wellhead location. They often traverse rugged, unprepared terrain directly from the drilling pad. This requires detailed spans analysis and support design to prevent sagging. Pipelines, however, benefit from strategic route surveying to avoid steep inclines and minimize the number of river or road crossings, utilizing Horizontal Directional Drilling (HDD) for long-distance stability.

5. Expansion Loops and Thermal Management

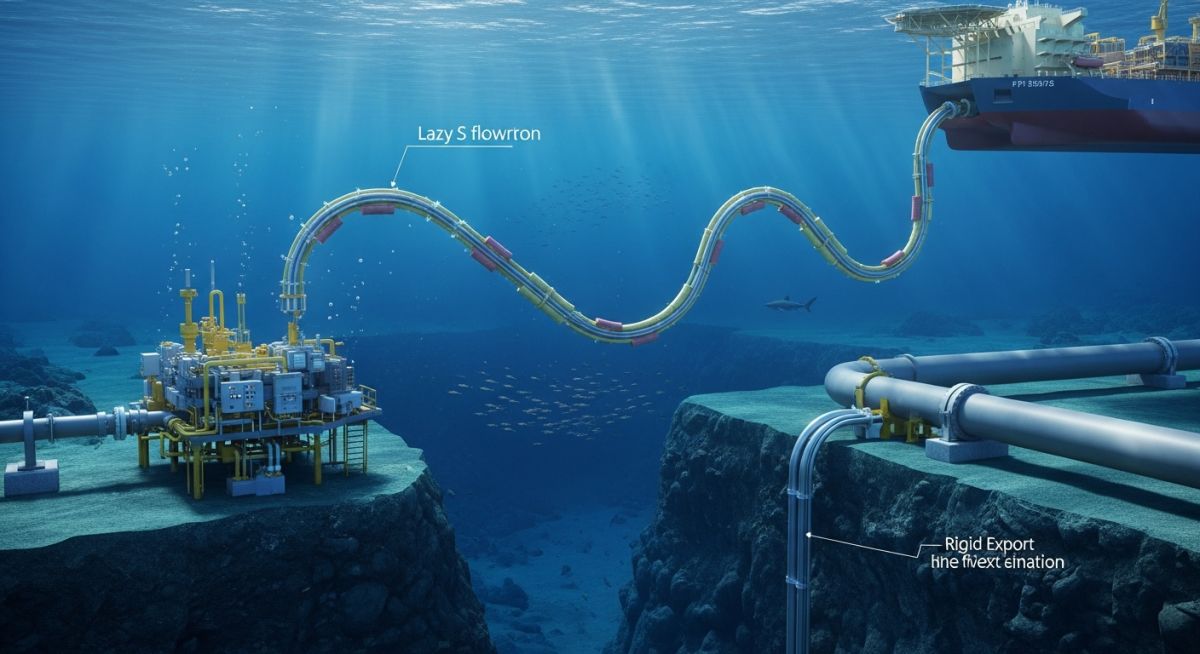

Because flowlines operate at high reservoir temperatures, they utilize "L-type" or "U-type" expansion loops to absorb thermal growth. In the Flowlines vs Pipelines comparison, pipelines usually rely on the natural flexibility of long straight runs or the soil restraint of being buried to manage minimal temperature fluctuations. For subsea flowlines, "Lazy-S" or "Wave" configurations are essential to prevent fatigue from riser movement and thermal cycling.

6. Hook-ups and Installation Methods

The hook-up phase for a flowline involves complex "tie-ins" to the wellhead Christmas tree, often requiring flexible jumpers or specialized flanges. Pipeline installation is a factory-like process of "stringing, bending, and welding" across vast distances. For 2026 projects, integrated sensors are now standard in flowline hook-ups to monitor real-time sand production and erosion rates.

Technical Differences: Flowlines vs Pipelines Performance

The technical performance of Flowlines vs Pipelines is governed by international standards. Flowlines must adhere to API Spec 17J for flexible variants or API 5L for rigid steel, but with more stringent testing requirements for impact toughness. According to the American Petroleum Institute (API), the design life of a flowline is typically shorter (10-15 years) compared to the 25-50 year lifecycle expected of a major transmission pipeline.
