Ultimate Guide to ASTM A333 Gr 6: Properties, Applications, and A106 Gr B Comparisons

What is ASTM A333 Gr 6 Carbon Steel for Low-Temperature Service?

The ASTM A333 Gr 6 specification covers seamless and welded nominal wall carbon and alloy steel pipe intended for use at low temperatures. In the hierarchy of industrial piping, this grade is classified as a Low-Temperature Carbon Steel (LTCS). Unlike standard A106 materials, Grade 6 is specifically engineered to resist brittle fracture, a phenomenon where steel loses ductility and fails suddenly when exposed to sub-zero conditions.

According to ASME B31.3 (Process Piping) and ASME Section VIII, materials used in refrigerated or cryogenic environments must demonstrate specific notch toughness. ASTM A333 Gr 6 meets these requirements through a controlled manufacturing process that emphasizes a fine-grain crystalline structure, typically achieved via normalizing heat treatments.

Critical Information Required to Purchase ASTM A333 Gr 6 Pipe

When procurement teams or piping engineers issue a purchase order for ASTM A333 Gr 6, specific technical parameters must be defined to ensure compliance with project specifications. Missing data can lead to the delivery of material that fails to meet safety codes for low-temperature service.

• Quantity and Dimensions: Total length (meters/feet), Nominal Pipe Size (NPS), and Schedule (e.g., SCH 40, SCH 80).
• Manufacturing Method: Specify “Seamless” or “Welded.” For critical high-pressure lines, seamless is often preferred.
• Heat Treatment: Ensure the Material Test Report (MTR) confirms the pipe was normalized or quenched and tempered.
• Impact Test Temperature: The standard temperature is -45 degrees C (-50 degrees F). If the project requires lower temperatures, additional testing may be needed.
• Supplementary Requirements: Mention any additional tests like Product Analysis or NACE MR0175 compliance for sour service.

Chemical Composition Requirements for ASTM A333 Gr 6 Material

The chemistry of ASTM A333 Gr 6 is meticulously balanced to provide a blend of strength and weldability while maintaining toughness. The inclusion of Manganese (Mn) is critical as it refines the grain size and improves the impact properties of the carbon steel.

Note: For each reduction of 0.01 percentage point below the specified carbon maximum, an increase of 0.05 percentage point manganese above the specified maximum is permitted up to a maximum of 1.35 percentage point manganese.

Mechanical Properties and Tensile Strength of A333 Gr 6 Pipe Material

The mechanical properties of ASTM A333 Gr 6 are designed to ensure that the piping can withstand both internal pressure and external mechanical loads at reduced temperatures. These properties are verified through tensile testing and elongation measurements as per ASTM A370 standards.

Technical Differences: ASTM A106 Gr B vs. ASTM A333 Gr 6 Pipe Material

A common question in piping engineering is whether ASTM A106 Gr B can be substituted for ASTM A333 Gr 6. While their tensile strengths are nearly identical, their performance in cold climates is vastly different.

Calculations and Impact Energy for ASTM A333 Gr 6

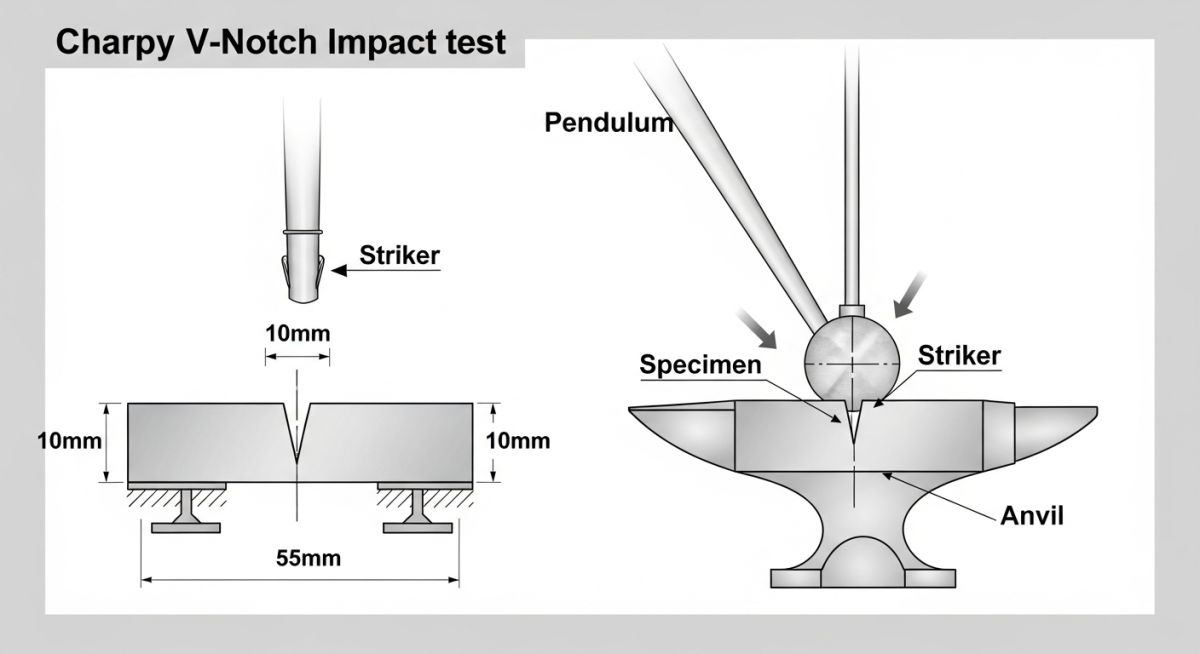

For engineering design, the impact energy absorbed by the material is calculated using Charpy V-notch tests. The impact energy requirement is a function of the specimen size. If sub-size specimens are used due to wall thickness limitations, the energy requirements are adjusted proportionally.

Engineers must verify that the ASTM A333 Gr 6 pipe supplied has been tested at the correct temperature specified in the design. If the project operating temperature is lower than -45 degrees C, the pipe may require re-testing or an upgrade to A333 Grade 8 (liquid nitrogen service).

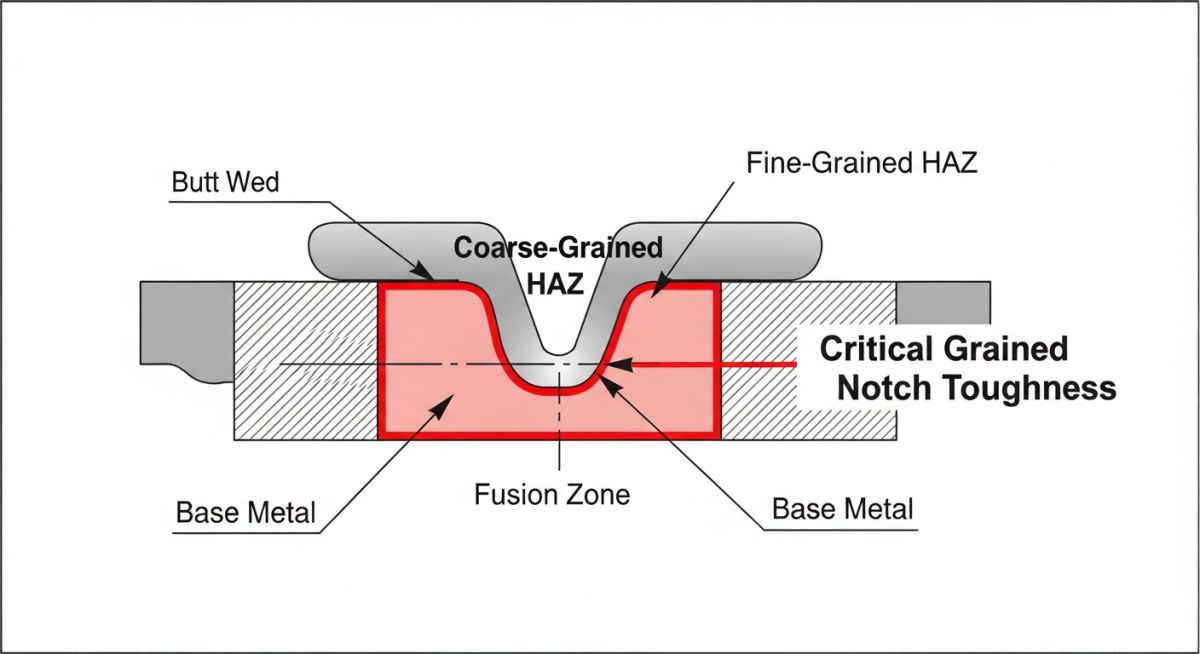

Welding Metallurgy and Heat Affected Zone (HAZ) in ASTM A333 Gr 6

The primary challenge when welding ASTM A333 Gr 6 is not just joining the metal, but preserving the low-temperature notch toughness within the Heat Affected Zone (HAZ). During welding, the high heat input can cause grain coarsening, which significantly raises the Ductile-to-Brittle Transition Temperature (DBTT), potentially making the weld area susceptible to brittle failure at -45 degrees Celsius.

Managing Heat Input for ASTM A333 Gr 6

To maintain a fine-grain structure, engineers must strictly control the Heat Input (HI). High heat input leads to slow cooling rates, which promotes the growth of large grains. The heat input is calculated using the following formula:

Essential Welding Procedures

According to ASME Section IX, the Welding Procedure Specification (WPS) for LTCS materials must be qualified with impact testing of both the weld metal and the HAZ. Key technical requirements include:

Failure to control these variables can result in "local brittle zones" where the absorbed impact energy falls below the mandatory 18 Joules, necessitating costly cut-outs and re-welding. Always ensure that the ASTM A333 Gr 6 base metal chemistry, specifically the Carbon Equivalent (CE), is compatible with the intended welding heat input.

Frequently Asked Questions: ASTM A333 Gr 6

Conclusion

Understanding the technical nuances of ASTM A333 Gr 6 is vital for any engineer working in the midstream, downstream, or cryogenic sectors. By prioritizing notch toughness and adhering to ASME B31.3 standards, facilities can mitigate the risks of brittle fracture in sub-zero environments. Whether you are comparing Grade 6 to A106 or calculating sub-size impact energy, this material remains the cornerstone of safe, low-temperature piping design in 2026.
