Differences Between ASTM A312 and ASTM A358: ASTM A312 vs ASTM A358

What is ASTM A312? (Seamless and Welded)

ASTM A312 is the primary material specification for seamless, straight-seam welded, and heavily cold-worked austenitic stainless steel pipe. Designed for 2026 high-temperature and general corrosive service, it is the “workhorse” of the piping industry. Most process plants utilize A312 for small-bore piping (typically 1/8 inch to 24 inches).

The welded variant in A312 is produced using an automatic welding process that requires no addition of filler metal (autogenous welding). This ensures the chemical composition of the weld remains identical to the parent base metal, providing uniform corrosion resistance across the pipe’s circumference. For critical applications, A312 pipe must undergo heat treatment (solution annealing) to restore the metallurgical properties of the stainless steel after the fabrication process.

What is ASTM A358? (Electric Fusion Welded)

ASTM A358 covers Electric Fusion Welded (EFW) austenitic stainless steel pipe intended for high-temperature and high-pressure service. Unlike A312, A358 is specifically engineered for large-diameter pipes (often 8 inches up to 72 inches or more) where seamless manufacturing is either impossible or prohibitively expensive in 2026.

The defining characteristic of A358 is the addition of filler metal during the welding process. This allows for thicker wall sections to be joined securely. A358 is unique because it is divided into five distinct classes (Class 1 through Class 5), which dictate the level of radiographic examination and whether the weld is made from one side or both sides. This classification system gives engineers the flexibility to balance cost against joint integrity based on the fluid service’s severity.

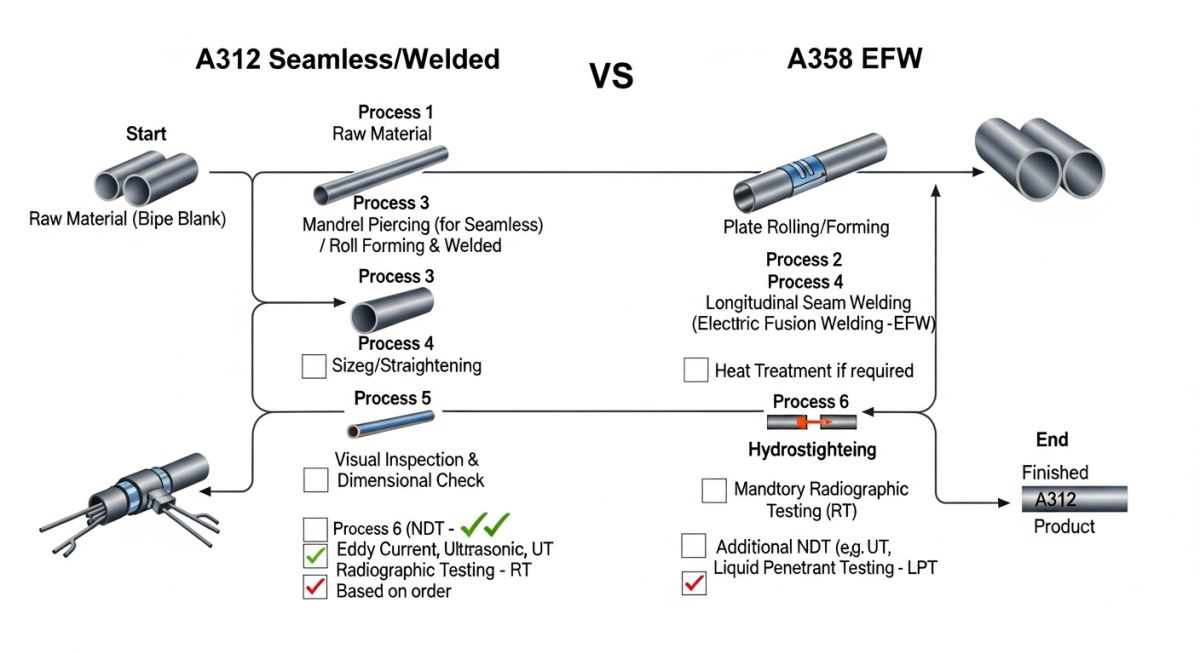

Manufacturing Process Comparison

ASTM A312 vs ASTM A358: Key Differences in Manufacturing

The fundamental divergence between ASTM A312 vs ASTM A358 lies in the welding methodology and the resulting weld joint. In A312 welded pipe, the edges of the plate are fused directly. In A358, an electrode provides filler material, creating a weld bead that must be carefully managed to avoid defects like slag inclusion or lack of fusion.

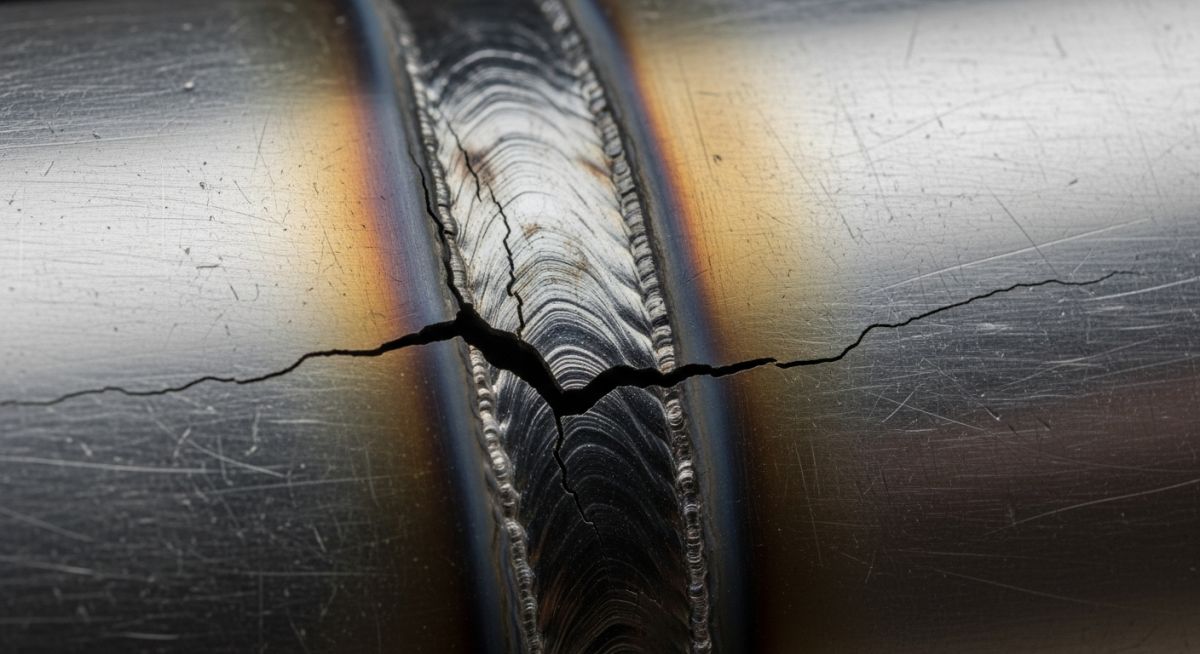

Furthermore, A358 pipes are fabricated from ASTM A240 plate. The quality of the final pipe is heavily dependent on the quality of the plate and the expertise of the welder or welding machine. Because A358 pipes are often large, they frequently undergo 100% X-ray inspection (Radiographic Testing) to ensure the filler-metal joint is free of internal voids, whereas A312 pipes often rely on eddy current or hydrostatic testing for quality assurance.

Critical Applications: Choosing ASTM A312 vs ASTM A358

In 2026 industrial projects, the selection between ASTM A312 vs ASTM A358 is driven primarily by the required pipe diameter and the severity of the fluid service. ASTM A312 is the default choice for process piping in chemical plants, food processing, and cryogenic services for diameters below 12 inches. Its seamless variant is preferred for high-vibration environments where a longitudinal weld might act as a stress riser.

Conversely, ASTM A358 is mandated for large-scale infrastructure such as water desalination intake lines, heavy-wall refinery reactors, and large-bore steam headers. Because A358 allows for filler metal, it can accommodate the heavy wall thicknesses (Schedule 80 and above) required for high-pressure headers that A312 cannot realistically achieve through autogenous welding.

Engineering Standards: ASME B31.3 Compliance for ASTM A312 vs ASTM A358

Compliance with ASME B31.3 (Process Piping) is the most critical hurdle for any engineer. When comparing ASTM A312 vs ASTM A358, you must evaluate the Weld Joint Quality Factor (Ej). For A312 welded pipe, the Ej is typically 0.85. However, A358 provides a path to a 1.00 factor, allowing for thinner walls (and lower costs) if the correct Class is specified.

Cost and Availability Impact: ASTM A312 vs ASTM A358

In 2026, market volatility makes procurement strategy as important as technical design. ASTM A312 is a commodity item; it is readily available from stockists worldwide in common grades like 304L and 316L. ASTM A358, however, is often a “made-to-order” product, especially for higher classes or exotic stainless grades like 317L or 347H.

While A358 has a higher manufacturing cost per foot due to the filler metal and radiographic testing requirements, it is significantly cheaper than A312 Seamless for any size over 10 inches. Engineers should perform a lifecycle cost analysis, considering that an A358 Class 1 pipe with a 1.00 Ej may allow for a reduced wall thickness compared to an A312 Welded pipe (0.85 Ej), potentially saving tons of stainless steel on large projects.

Expert Insights: Lessons from 20 years in the field

• The 8-Inch Rule: While ASTM A312 is available in larger sizes, most global mills optimize their lines for 8 inches and below. For anything larger, ASTM A358 often provides better lead times and more reliable weld profiles due to the EFW process.
• Specify the Class: Simply writing “ASTM A358” on a purchase order is a recipe for disaster. You must specify the Class (1 through 5). A vendor will quote Class 3 (no RT) to win on price, but your service might demand Class 1 (100% RT).
• Wall Thickness Sensitivity: In 2026, with rising nickel prices, using ASTM A358 Class 1 (Ej 1.00) often allows you to drop one schedule size (e.g., from Sch 40S to Sch 10S) compared to A312 welded, leading to massive cost savings.

Frequently Asked Questions

References & Standards

• ASTM A312/A312M Standard Specification for Seamless and Welded Stainless Steel Pipes
• ASTM A358/A358M Standard Specification for EFW Stainless Steel Pipe for High-Temp Service
• ASME B31.3 Process Piping Guide (2026 Edition)
