Understanding the Crude Distillation Unit (CDU) Process from Crude Oil to Gasoline

Introduction

The Crude Distillation Unit (CDU) is one of the most crucial components of an oil refinery. It transforms raw crude oil into different fractions, each of which has its own application. In this article, we will take a deep dive into how the CDU works, its essential role in the oil refining process, and how it contributes to the production of gasoline, diesel, and other petroleum-based products.

Topics for Crude Distillation Unit

Quiz on Crude Distillation Unit

CDU Process Quiz

1. What is the primary function of the Crude Distillation Unit (CDU) in a refinery?

Choose the correct answer:

2. At what temperature is crude oil typically heated in the furnace before entering the CDU column?

Choose the correct answer:

3. What happens to the vaporized crude oil as it moves up the distillation column?

Choose the correct answer:

4. Which of the following is the heaviest fraction collected from the CDU?

Choose the correct answer:

Complete Course on Piping Engineering

Basics, Codes & Standards, Layout, Materials & Stress Analysis

Check Details

What is a Crude Distillation Unit?

The Crude Distillation Unit (CDU), also known as the atmospheric distillation unit, is the primary processing step in refining crude oil. It is responsible for fractionating crude oil into various hydrocarbon products based on their boiling points through a process called fractional distillation. This separation is essential for producing various petroleum products, including gasoline, diesel, and kerosene.

How the CDU Works: Step-by-Step Breakdown

The operation of the CDU follows a step-by-step process that ensures the efficient separation of crude oil into valuable products. The main stages are:

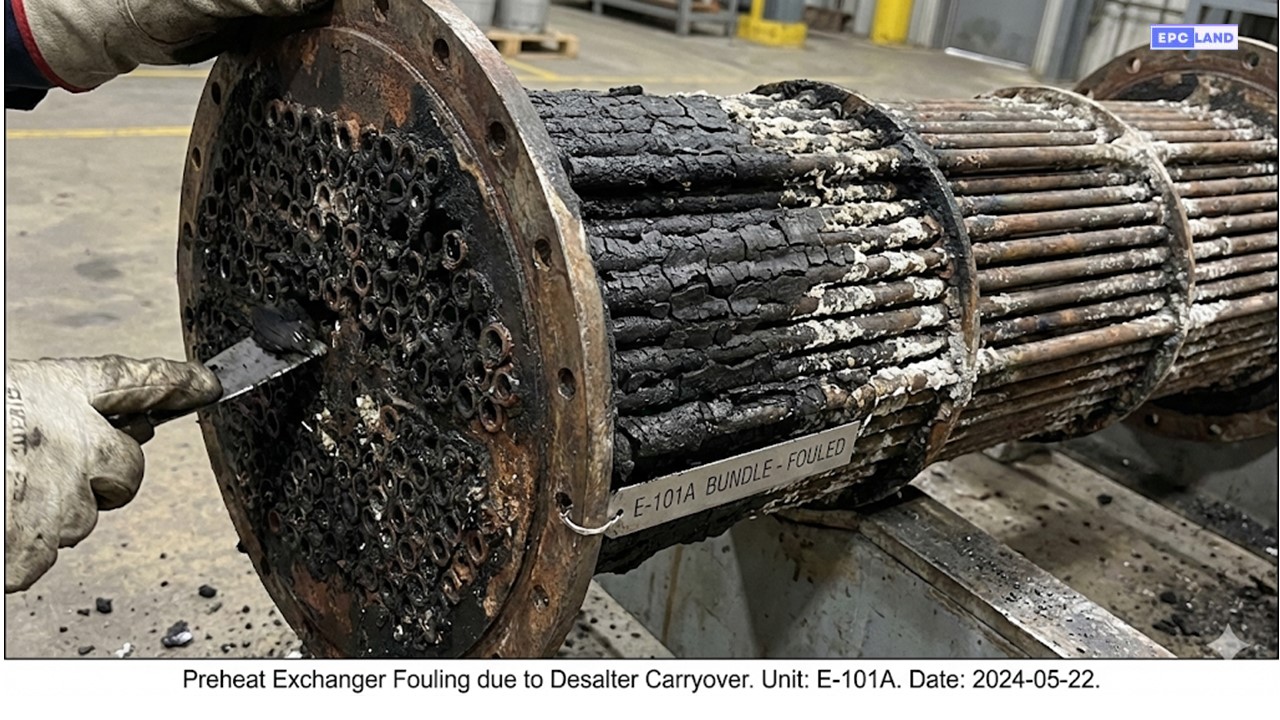

Heating

Crude oil is first heated in a furnace to temperatures between 350°C and 400°C. The heating process converts the liquid crude oil into vapor, preparing it for separation in the distillation column.

Vaporization

Once heated, the vaporized crude oil is passed into the distillation column. This column is a vertical, cylindrical structure equipped with trays or packing that facilitate the vapor’s interaction with the column’s internal components.

Separation

Inside the column, there is a temperature gradient, with higher temperatures at the bottom and cooler temperatures at the top. As the vaporized crude oil rises, the different fractions of the crude begin to condense at various levels depending on their boiling points. The lighter fractions (such as gases) condense at the top, while heavier fractions (such as asphalt) condense at the bottom.

Lighter hydrocarbons (methane, ethane, propane, and butane) condense at the upper levels.
Middle distillates such as gasoline, kerosene, and diesel, are drawn off at intermediate levels.
Heavier fractions like lubricating oils and fuel oils are collected from lower levels.

Collection

Each fraction is drawn off at the corresponding level of the distillation column. These fractions undergo further treatment in other refinery units to produce final products such as gasoline, jet fuel, diesel, and asphalt.

The Anatomy of a CDU

The CDU column is a tall, vertical structure composed of several key parts that ensure the efficient separation of crude oil:

Furnace: The initial heating of crude oil.
Distillation Column: Houses the trays or packing for fractional separation.
Trays/Packing: Increase the contact surface between vapor and liquid, improving the separation efficiency.
Overhead Condenser: Cools and condenses lighter fractions collected at the top.
Pumps and Pipelines: Transport the separated fractions to their respective storage or further processing units.

Products of Crude Oil from the CDU

The CDU produces a wide variety of fractions, each of which serves a specific purpose in the energy industry. Let’s explore the most common fractions:

Petroleum Gases

These gases, such as methane, ethane, propane, and butane, are the lightest hydrocarbons in crude oil. They are used for heating, cooking, and in industrial processes.

Gasoline

Gasoline is a vital transportation fuel used in gasoline-powered vehicles. It is one of the most valuable products derived from the crude distillation process due to its wide usage in the global automotive industry.

Kerosene

Kerosene is primarily used as jet fuel for aviation, though it also serves as a heating fuel in some regions.

Diesel Fuel

Diesel fuel is essential for diesel engines, which power large trucks, buses, and ships. Its demand continues to grow, especially in industries that rely on heavy-duty vehicles.

Fuel Oil

Fuel oil is used for heating and power generation. It is heavier than diesel and often serves as a backup fuel for power plants or in large industrial boilers.

Lubricating Oils

These oils are essential for machinery lubrication. Lubricating oils are used in a wide variety of machines, from automobiles to industrial equipment.

Asphalt

Asphalt is the heaviest fraction, often used in road construction and roofing materials. Its ability to solidify at room temperature makes it ideal for structural applications.

Fractional Distillation: The Science Behind CDU Operations

Fractional distillation is the process that enables the CDU to separate crude oil into various components. This technique relies on the fact that different hydrocarbon compounds have different boiling points. As the crude oil vapor rises through the column, the lighter hydrocarbons with lower boiling points rise to the top, while heavier hydrocarbons condense lower in the column.

The effectiveness of fractional distillation depends on the temperature gradient within the column. Careful control of this gradient ensures that each hydrocarbon fraction condenses at the appropriate level, enabling the refinery to maximize its yield of valuable products.

Table: Typical Products and Boiling Points

Fraction	Boiling Point Range (°C)	Primary Use
Petroleum Gases	Below 20°C	Heating, cooking, industrial uses
Gasoline	40°C – 205°C	Transportation fuel
Kerosene	150°C – 300°C	Jet fuel, heating fuel
Diesel Fuel	250°C – 350°C	Diesel engines
Fuel Oil	300°C – 400°C	Industrial heating, power plants
Lubricating Oils	Above 400°C	Machinery lubrication
Asphalt	Above 500°C	Road construction, roofing

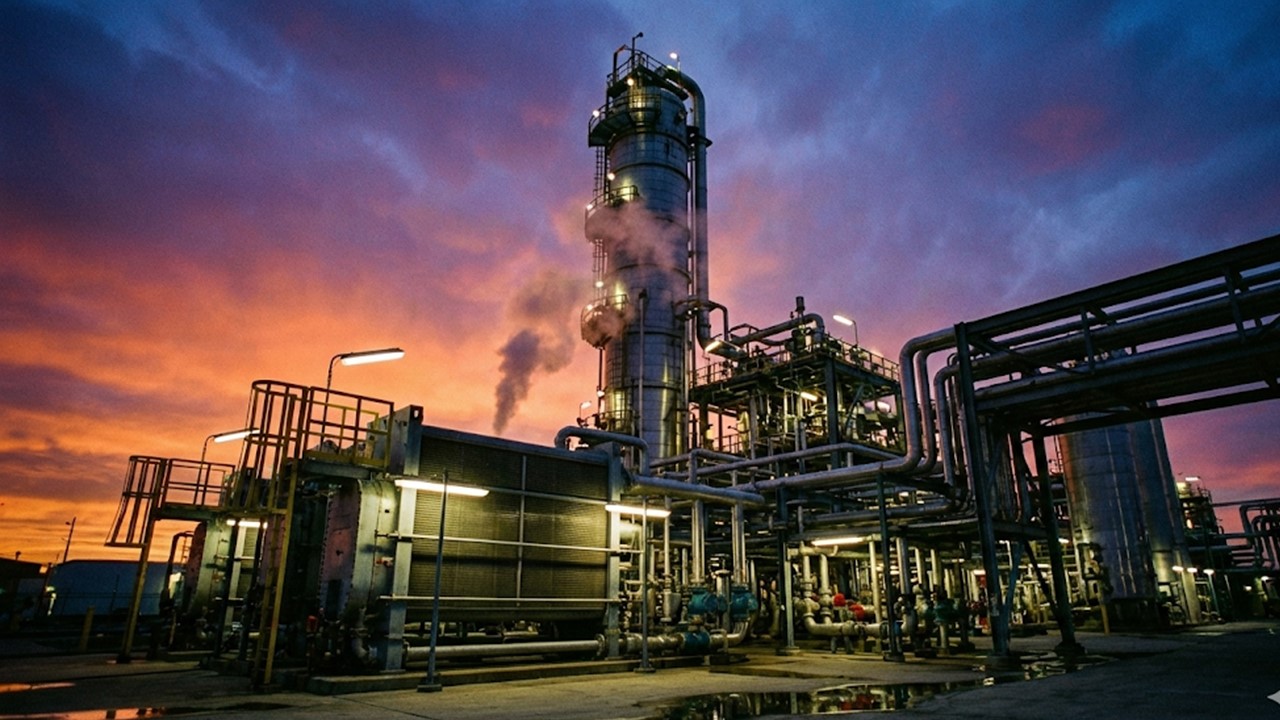

Crude Distillation Unit

Role of the CDU in an Oil Refinery

The CDU is the first step in the refining process and plays a crucial role in determining the overall efficiency of a refinery. Since crude oil varies in composition, the CDU must be flexible enough to handle different types of crude, whether they are light, medium, or heavy.

Light crude tends to produce more gasoline and lighter fractions, while heavy crude yields more diesel and heavy oils.
The efficiency of the CDU directly impacts the refinery’s profitability, as it sets the stage for subsequent processing steps in units such as hydrocrackers, reformers, and desulfurization units.

Maximizing Profitability Through CDU Optimization

The profitability of a refinery hinges on optimizing the CDU to extract the most valuable products from crude oil. Various strategies can improve CDU performance, including:

Maximizing gasoline production: Adjusting operational parameters to prioritize the production of gasoline, given its high market value.
Reducing energy consumption: Implementing energy-efficient technologies in the heating process can significantly reduce operational costs.
Minimizing waste: Recycling and reprocessing low-value fractions can lead to higher overall yields.

Conclusion: The Backbone of Oil Refining

The Crude Distillation Unit is the backbone of any oil refinery, providing the basic building blocks for various petroleum products. From gasoline to lubricating oils, the CDU’s efficiency has a direct impact on the quality and quantity of refined products. Understanding how the CDU operates and its essential role in the refining process is key to appreciating the complexities of the petroleum industry.

FAQs

What is a Crude Distillation Unit (CDU)? The CDU is the first step in refining crude oil, where it is heated and separated into various hydrocarbon fractions based on their boiling points.
What products are made from the CDU process? Products include petroleum gases, gasoline, kerosene, diesel, fuel oil, lubricating oils, and asphalt.
How does fractional distillation work in a CDU? Fractional distillation separates crude oil into fractions by heating it, causing various hydrocarbons to condense at different levels in the distillation column based on their boiling points.
Why is the CDU critical for a refinery’s profitability? The CDU’s efficiency determines the refinery’s yield of high-value products such as gasoline and diesel, impacting overall profitability.
Can the CDU handle all types of crude oil? Yes, CDUs are designed to process different types of crude, although adjustments may be necessary to optimize the output for light or heavy crude.
