Utility stations play a crucial role in any industrial plant by providing essential utility services such as nitrogen, plant air, service water, and steam. Properly designed utility stations ensure that these services are accessible where needed, contributing to the efficiency and safety of plant operations. This article delves into the critical aspects of utility stations piping layout, including the types of services provided, fittings used, and key considerations for their placement and design.
Q&A on Utility Stations
1. What is the primary use of nitrogen in industrial plants?
Choose the correct answer:
Explanation: Nitrogen is primarily used for purging services during maintenance. It ensures that all gases are removed from vessels before personnel enter, preventing asphyxiation.
2. What is the role of plant air in an industrial plant?
Choose the correct answer:
Explanation: Plant air is used for cleaning shell and tube heat exchanger tubes, plate heat exchanger tubes, and tanks. Its high pressure helps remove debris and maintain cleanliness.
3. Which utility is used for heating parts of vessels?
Choose the correct answer:
Explanation: Steam is utilized for heating parts of vessels. Its high temperature makes it effective for various cleaning and heating applications in industrial plants.
Understanding Utility Stations

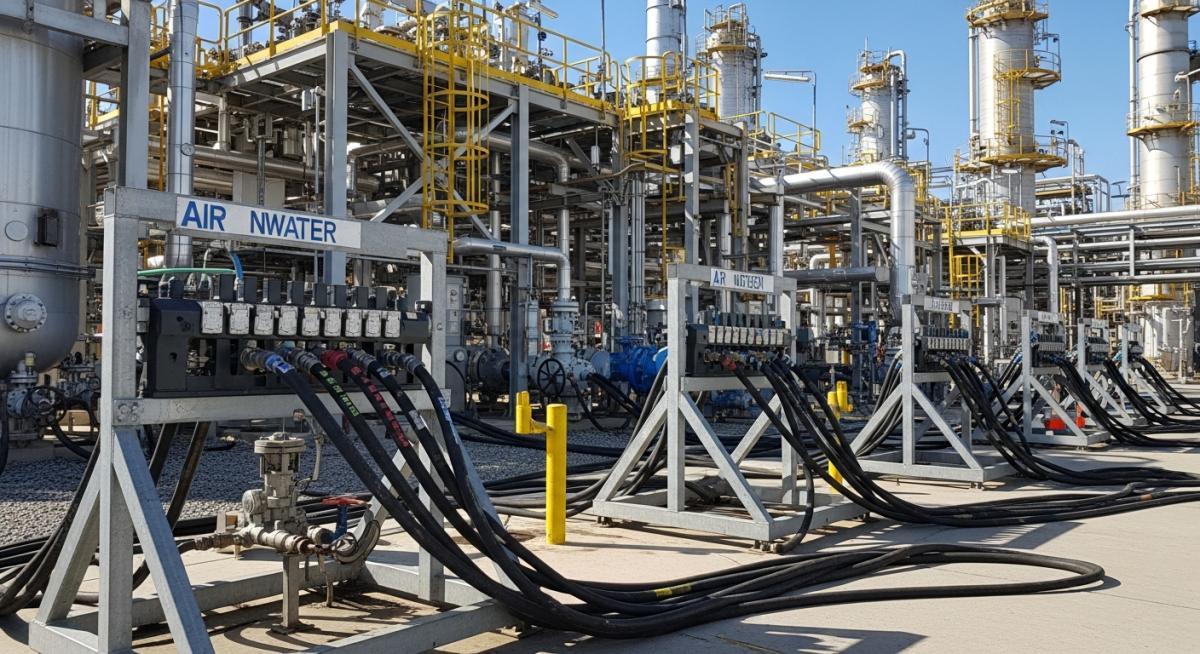

Utility stations are strategically placed throughout an industrial plant to supply essential utilities to various equipment and vessels. The distribution of these stations ensures that any vessel can be serviced using hoses of typically 15 meters in length. Proper layout and installation are vital to ensure that the utilities are efficiently and safely provided to different parts of the plant.
Quick Video on Utility Stations
Types of Utilities
- Nitrogen Nitrogen, an inert gas, is primarily used for purging services. During maintenance, vessels must be purged of all gases using nitrogen. It is critical to ensure that all nitrogen is removed before maintenance personnel enter the vessel to prevent asphyxiation due to the lack of oxygen.
- Plant Air Plant air serves multiple cleaning purposes. It is used to clean shell and tube heat exchanger tubes, plate heat exchanger tubes, and tanks. The high-pressure air helps remove debris and maintain the cleanliness of equipment.
- Service Water Service water is essential for general cleaning tasks within the plant. It is used for cleaning heat exchangers, floors, vessels, and other equipment, ensuring that the plant remains in good operational condition.
- Steam Steam is utilized for cleaning vessels, heating parts of vessels, and cleaning heat exchanger tubes. Its high temperature makes it an effective cleaning agent for various industrial applications.
Fittings and Connections
- Hose Connections
- Air and water lines typically use quick-type hose connections.
- Steam lines employ flanged-type hose connections.
- Connections for air, water, and nitrogen are generally directed downward.
- All connections feature globe valves for isolation purposes.
- Specifics for Hoses and Connections
- Nitrogen: The hose has a built-in non-return valve and quick coupling at the pipe end. Hoses are typically 25 meters long, with rubber construction and male quick coupling for utility stations.
- Steam: Hoses are made of stainless steel braiding with a male quick coupling at the utility station end and a female threaded end on the other side.
- Air and Water: Hoses are rubber-made with male quick connects for utility stations and male threaded ends on the other side.
Q&A on Utility Stations
1. What type of hose connection is typically used for steam lines?
Choose the correct answer:
Explanation: Steam lines employ flanged-type hose connections for their high temperature and pressure requirements.
2. What is the typical construction of a nitrogen hose?
Choose the correct answer:
Explanation: Nitrogen hoses typically have a built-in non-return valve and quick coupling at the pipe end, with a length of about 25 meters and are rubber-made.
3. Where are utility stations generally located?
Choose the correct answer:
Explanation: Utility stations are generally located adjacent to pipe-rack columns, on elevated structures, and on operating platforms for vertical equipment, as well as at loading racks to facilitate easy access.
Why Isolation Valves are Essential in Utility Stations
In the fast-paced environment of an industrial plant, safety, and efficiency are non-negotiable. A critical yet often overlooked aspect of maintaining these standards is the strategic placement of isolation valves in utility stations. These valves, especially those positioned nearest to the header, serve as vital safeguards against potential disasters and play a key role in ensuring smooth operations.
Guarding Against Unexpected Breaks
Imagine the chaos if a utility line suddenly snaps near the ground—a location buzzing with activity, from workers on foot to heavy machinery in motion. Here’s why isolation valves are crucial:
- Immediate Containment: An isolation valve allows for the immediate shutdown of the affected section without disrupting the entire plant’s operation.
- Safety First: Without these valves, a broken line could force an entire unit to shut down, posing risks to both personnel and equipment.
- Real-World Scenario: Picture a worker pulling on a hose connected to a coupling, unaware of the stress it’s placing on the line. Suddenly, there’s a loud “SNAP!”—the line breaks, and without a nearby isolation valve, the entire operation could be compromised.
Making Maintenance Safe and Simple
Maintenance crews are the unsung heroes who keep everything running smoothly. For them, convenience isn’t a luxury—it’s a necessity. Here’s how isolation valves make their job easier and safer:
- Ease of Access: By placing valves near grade level, maintenance workers can easily turn utility services on or off without the need to climb up into the pipe rack.
- Reduced Risk: This placement minimizes the risk of falls and other accidents, making routine tasks safer.
- Improved Efficiency: When tasks are straightforward and safe, workers are more likely to approach their jobs with care and attention, leading to better outcomes.
- Positive Work Environment: Frustration from difficult or dangerous tasks can lead to rushed work or safety oversights. By making maintenance easier, you’re fostering a happier, more productive workforce.
Number and Location of Utility Stations
The number of utility stations must be sufficient to ensure that all equipment is accessible from at least one station. The coverage radius of each utility station should be approximately 15 meters around its location.
Utility stations are generally located adjacent to pipe-rack columns, on elevated structures such as technological structures, and on operating platforms for vertical equipment. Additionally, utility stations should be positioned at loading racks to facilitate easy access.
Design Considerations
- Accessibility Ensure that utility stations are accessible to all necessary equipment. Proper placement minimizes downtime and improves operational efficiency.
- Safety The design must prioritize safety, particularly for gases like nitrogen. Proper signage and safety protocols should be implemented to avoid accidents and ensure that maintenance personnel are aware of potential hazards.
- Maintenance Regular maintenance and inspection of utility stations and their components are crucial. This includes checking hoses, connections, and valves to prevent leaks and ensure reliable operation.
Common Challenges and Solutions in Utility Station Design
Designing utility stations in industrial plants comes with its own set of challenges. Addressing these challenges proactively can prevent costly downtime, ensure safety, and enhance the overall efficiency of the plant. Below are some of the most common challenges and the solutions to mitigate them:
Potential Risks
1. Wear and Tear on Hoses and Connections
One of the most common issues faced in utility stations is the wear and tear on hoses and their connections. Over time, hoses that transport vital utilities such as steam, water, air, and nitrogen can degrade due to constant use, exposure to harsh chemicals, extreme temperatures, and physical stress. This degradation can lead to leaks, pressure drops, and in severe cases, complete hose failure, which can halt operations or even cause safety hazards.
2. Risks of Line Breaks Due to Foot Traffic or Machinery
Utility stations are often located in areas with heavy foot traffic or near operational machinery. The movement of workers, vehicles, and equipment around these stations increases the risk of accidental damage to the utility lines. For instance, a hose or pipe could be accidentally struck by machinery, or a worker might trip over a hose, leading to a line break. Such incidents not only pose a safety risk but can also disrupt the plant’s operations if not managed swiftly.
Solutions to common challenges
1. Use of High-Quality Materials
To combat wear and tear, investing in high-quality materials for hoses and fittings is essential. Here are some strategies:
- Durable Hose Materials: Opt for hoses made from materials that are resistant to chemicals, temperature fluctuations, and physical stress. For example, stainless steel-braided hoses for steam services and reinforced rubber hoses for air and water services can significantly extend the life of the hoses.
- Quality Fittings: Ensure that fittings, couplings, and connections are made from robust materials such as carbon steel or stainless steel, depending on the service conditions. High-quality fittings reduce the risk of leaks and ensure a secure connection between the hose and the utility station.
- Regular Maintenance and Inspections: Implement a routine inspection schedule to check for signs of wear, corrosion, or damage. Early detection of potential issues can prevent unexpected failures and extend the lifespan of the equipment.
2. Strategic Placement of Isolation Valves and Protective Measures
Mitigating the risks associated with line breaks requires thoughtful design and protective measures:
- Isolation Valves Near Ground Level: As mentioned earlier, placing isolation valves near grade level allows for quick shutdown of a specific section of the utility line in case of a break. This prevents the need to shut down the entire system and minimizes downtime.
- Protective Barriers: Install protective barriers or guards around critical utility lines, especially in areas with heavy machinery or frequent foot traffic. These barriers can absorb impacts and prevent direct contact with the utility lines.
- Clear Marking and Signage: Clearly mark utility lines and hoses to make workers aware of their presence. Signage indicating the type of service (e.g., steam, nitrogen) and caution markers can help reduce accidental damage.
- Flexible Hose Support Systems: Use hose reels or brackets to keep hoses off the ground when not in use. This not only prevents tripping hazards but also reduces wear on the hoses from being dragged along the ground.
FAQs
- What is the primary function of utility stations in an industrial plant? Utility stations provide essential utilities such as nitrogen, plant air, service water, and steam to various equipment and vessels throughout the plant.
- Why is nitrogen used in utility stations? Nitrogen is used for purging vessels to remove all gases before maintenance. It is an inert gas that prevents oxygen deficiency and potential hazards during maintenance activities.
- What types of hoses are used for different utilities?
- Nitrogen hoses are rubber-made with male quick couplings.
- Steam hoses are stainless steel braided with male quick couplings.
- Air and water hoses are rubber-made with male quick connects.
- How should utility stations be located? Utility stations should be located adjacent to pipe-rack columns, elevated structures, and operating platforms. They must ensure coverage within a 15-meter radius around the station.
- What safety considerations should be taken into account for utility stations? Safety measures include ensuring proper removal of nitrogen before maintenance, regular inspection of hoses and connections, and clear signage to inform personnel of potential hazards.
