HDPE pipe meaning is High-density polyethylene (HDPE) pipes have gained immense popularity in various industries due to their exceptional durability, versatility, and cost-effectiveness. HDPE pipes are widely used in applications such as water supply, sewage systems, irrigation, gas distribution, and industrial processes. To ensure their optimal performance and compatibility, understanding the PN meaning in pipe i.e. Pressure Nominal (PN) rating system is crucial. In this comprehensive guide, we will delve into the world of HDPE pipes, explore their benefits, and demystify the concept of PN in HDPE.
Don’t forget to Login to earn rewards while reading this article
Login Here
What are HDPE pipes
HDPE pipes are thermoplastic pipes made from high-density polyethylene material. They are renowned for their excellent strength, flexibility, and chemical resistance properties. HDPE pipes are manufactured through a process called extrusion, which involves melting the polyethylene material and then forming it into a continuous profile. These pipes can be produced in various lengths, diameters, and thicknesses to suit different applications.
Factors to consider when selecting HDPE pipe sizes:
Factor | Description |
Flow Rate | Determine the required flow rate for the application. |
Pressure Rating | Choose a pipe size that can handle the system pressure. |
Pipe Length | Account for the total length of the pipe needed. |
Temperature | Consider the operating temperature of the fluid. |
Pipe Diameter | Select an appropriate diameter for optimal flow. |
Pipe Material | Ensure compatibility with HDPE material properties. |
Installation Space | Check available space for pipe installation. |
Future Expansion | Plan for potential future system expansions. |
Regulations | Follow local codes and standards for pipe sizing. |
Cost | Balance size with budget constraints. |
Quiz on Advantages of HDPE Pipes
1. What are HDPE pipes made from?
Choose the correct answer:
Explanation: HDPE pipes are made from high-density polyethylene (HDPE) material, which gives them their excellent strength, flexibility, and chemical resistance properties.
2. What is one key advantage of HDPE pipes?
Choose the correct answer:
Explanation: One key advantage of HDPE pipes is that they have leak-free joints due to fusion welding techniques, which eliminate the risk of leakage and ensure a reliable and efficient piping system.
The Significance of PN in HDPE Pipes
PN full form in hdpe pipe i.e. Pressure Nominal (PN) is a numerical indicator used to classify the pressure capacity of HDPE pipes. It provides crucial information about the maximum allowable operating pressure for a specific pipe. The PN rating system is designed to ensure the compatibility and safety of the piping system by categorizing pipes into different pressure classes.
The PN rating is based on the design stress of the HDPE material, typically expressed in megapascals (MPa). Common PN ratings for HDPE pipes include PN 2.5, PN 4, PN 6, PN 8, PN 10, PN 12.5, PN 16, PN 20, PN 25, and PN 32. The higher the PN value, the greater the pressure the pipe can withstand.
Video details on FAQs on HDPE
Understanding Pressure Nominal (PN) Rating
The PN rating of an HDPE pipe represents its pressure-carrying capacity at a specific temperature. It is crucial to consider both the internal and external factors that may affect the pressure on the pipe to ensure its safe and efficient operation. Here are some key points to understand about PN ratings in HDPE pipes:
a) Standard PN Ratings: The PN ratings assigned to HDPE pipes are standardized and determined by international standards organizations such as ISO (International Organization for Standardization) and DIN (Deutsches Institut für Normung). These standards ensure consistency and reliability in the design and manufacturing of HDPE pipes across different regions.
b) Temperature Considerations: The PN rating of an HDPE pipe is influenced by the operating temperature. Higher temperatures can decrease the pressure-carrying capacity of the pipe due to thermal expansion and other factors. Therefore, it is important to consider the maximum temperature expected in the system when selecting the appropriate PN rating.
c) Safety Margin: It is recommended to select an HDPE pipe with a PN rating that exceeds the expected operating pressure of the system. This allows for a safety margin, ensuring the pipe can withstand occasional pressure surges or fluctuations without compromising its integrity.
d) Derating Factors: The pressure-carrying capacity of HDPE pipes may be influenced by factors such as pipe diameter, wall thickness, and the type of fluid being transported. These factors are accounted for through derating factors, which adjust the PN rating accordingly. It is essential to consult the manufacturer’s guidelines or industry standards to determine the appropriate derating factors for specific applications.
e) Testing and Certification: HDPE pipes undergo rigorous testing and certification processes to ensure compliance with industry standards and specifications. The PN rating of a pipe is validated through various tests, including burst tests, hydrostatic pressure tests, and long-term performance evaluations. These tests provide assurance of the pipe’s strength and performance under different operating conditions.
Types of HDPE Pipes
HDPE (High-Density Polyethylene) pipes are versatile and come in various types, each suited for different applications depending on factors like pressure, temperature, and environmental conditions. Understanding the different types of HDPE pipes can help in selecting the most appropriate one for your specific needs.
1. Solid Wall HDPE Pipes
- Description: These are the most common type of HDPE pipes, made from a single layer of polyethylene. They are used in a wide range of applications, including water supply, gas distribution, sewage systems, and industrial piping.
- Applications: Suitable for underground water mains, gas pipelines, and irrigation systems. They are valued for their durability and resistance to corrosion.
2. Structured Wall HDPE Pipes
- Description: Structured wall HDPE pipes are designed with multiple layers or profiles that offer increased strength and flexibility. They are often used in gravity and non-pressure applications.
- Applications: These pipes are ideal for drainage systems, stormwater management, and sewer lines, where structural integrity is crucial but internal pressure is low.
3. HDPE Pipe with Steel Reinforcement
- Description: This type of HDPE pipe incorporates steel mesh or spiral wound steel reinforcements within the polyethylene structure. It combines the flexibility of HDPE with the strength of steel.
- Applications: Used in high-pressure applications where both durability and pressure resistance are required, such as in certain industrial processes and high-pressure water supply systems.
4. HDPE Corrugated Pipes
- Description: HDPE corrugated pipes have a corrugated outer wall and a smooth inner wall. The corrugated design provides high flexibility and resistance to external loads, making them suitable for various conditions.
- Applications: Commonly used in drainage systems, stormwater management, and culverts. The corrugated design helps in withstanding heavy loads from soil and traffic when buried underground.
5. HDPE Double Wall Pipes
- Description: Double wall HDPE pipes feature a corrugated outer wall for strength and a smooth inner wall for better flow characteristics. These pipes offer enhanced performance in terms of durability and flow efficiency.
- Applications: Ideal for sewage systems, stormwater drainage, and other underground drainage applications. They are designed to handle external pressures and harsh environmental conditions.
6. HDPE Pipes for Cable Protection
- Description: These HDPE pipes are specifically designed to protect electrical and telecommunications cables. They are typically flexible, non-conductive, and resistant to chemicals.
- Applications: Used in protecting fiber optic cables, power cables, and other sensitive lines from environmental damage and mechanical stress.
Choosing the Right Type of HDPE Pipe
The selection of the appropriate type of HDPE pipe depends on the specific requirements of your project, such as the type of fluid being transported, pressure levels, environmental conditions, and installation requirements. Each type of HDPE pipe offers unique benefits, and understanding these can help ensure that your piping system is both efficient and durable.
By familiarizing yourself with the different types of HDPE pipes, you can make informed decisions that meet the demands of your specific application, ensuring long-term performance and reliability.
Quiz on Types of HDPE pipes
1. Which type of HDPE pipe is best suited for high-pressure applications where both durability and pressure resistance are required?
Choose the correct answer:
Explanation: HDPE Pipe with Steel Reinforcement is best suited for high-pressure applications due to the combination of HDPE’s flexibility and steel’s strength.
2. What type of HDPE pipe is commonly used in drainage systems, stormwater management, and culverts due to its ability to withstand heavy loads?
Choose the correct answer:
Explanation: HDPE Corrugated Pipes are commonly used in these applications due to their corrugated design, which provides high flexibility and resistance to external loads.
3. Which type of HDPE pipe is ideal for underground water mains, gas pipelines, and irrigation systems?
Choose the correct answer:
Explanation: Solid Wall HDPE Pipes are ideal for underground water mains, gas pipelines, and irrigation systems due to their durability and resistance to corrosion.
Factors Influencing PN Selection
When selecting the appropriate PN rating for HDPE pipes, several factors need to be considered:
a) Operating Pressure: Determine the maximum and average operating pressures expected in the system. The selected PN rating should exceed these pressure requirements to ensure a safe and reliable piping system.
b) Pipe Diameter: Larger diameter pipes generally require higher PN ratings to withstand the same pressure compared to smaller diameter pipes. Consider the diameter of the pipe and the corresponding PN ratings available.
c) Fluid Compatibility: Different fluids have varying pressure characteristics. Consider the nature of the fluid being transported through the HDPE pipe, including its temperature, viscosity, and corrosiveness, to select an appropriate PN rating.
d) Environmental Conditions: Evaluate the environmental conditions in which the HDPE pipe will be installed. Factors such as soil type, temperature variations, and external loads can influence the selection of an appropriate PN rating.
e) Regulatory Requirements: Certain industries or regions may have specific regulatory requirements for HDPE pipe installations. Ensure compliance with these regulations and consider any additional factors they may impose on PN selection.
Q&A to understand HDPE PN Meaning
1. What does PN 6 indicate for an HDPE pipe?
Choose the correct answer:
Explanation: PN 6 indicates that the HDPE pipe can handle a maximum pressure of 6 bar (approximately 87 psi) at 20°C, making it suitable for low-pressure applications like irrigation systems.
2. In which type of applications is an HDPE pipe with a PN 10 rating typically used?
Choose the correct answer:
Explanation: HDPE pipes with a PN 10 rating are commonly used in moderate pressure applications such as water distribution networks, sewage systems, and industrial processes.
3. What is the significance of a PN 16 rating in HDPE pipes?
Choose the correct answer:
Explanation: A PN 16 rating in HDPE pipes means the pipe is designed to handle a maximum pressure of 16 bar (approximately 232 psi) at 20°C, making it suitable for high-pressure environments.

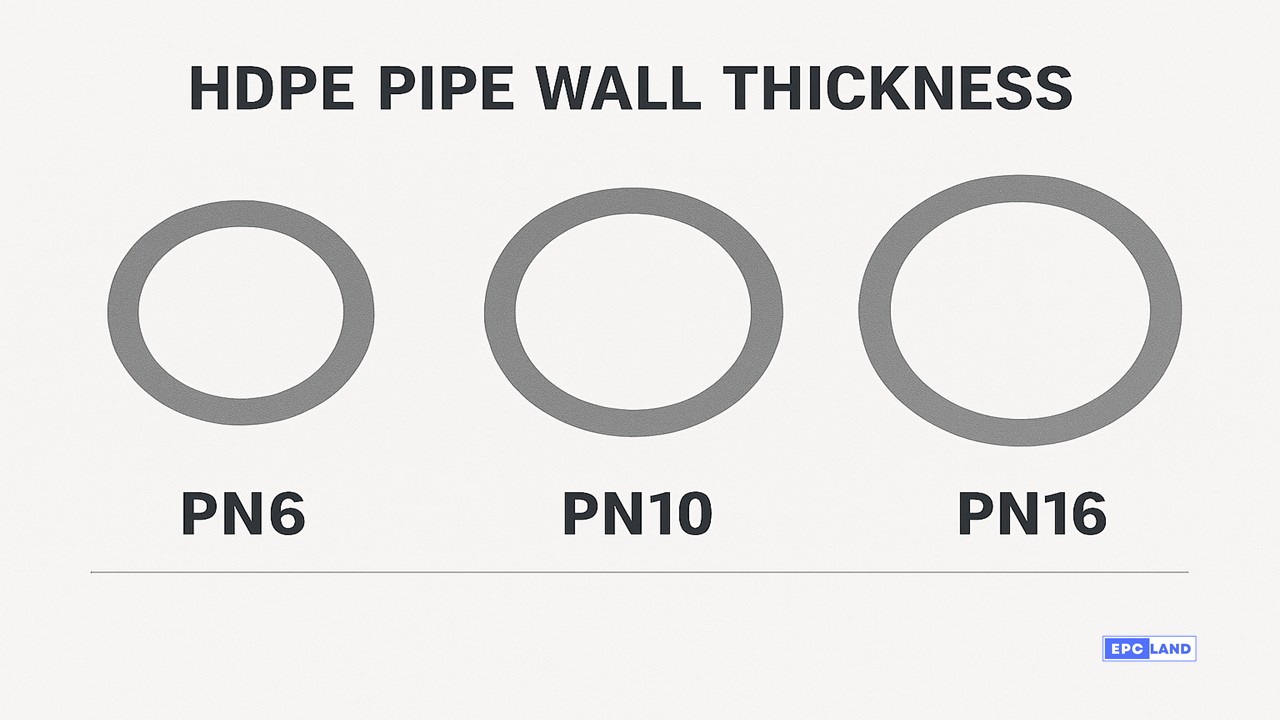

Understanding HDPE Pipes and PN Ratings
HDPE Pipes are widely used in various industries due to their high strength, durability, and resistance to chemicals. One of the critical factors in selecting the right HDPE pipe for your project is understanding the PN (Pressure Nominal) rating. The PN rating indicates the pipe’s ability to withstand internal pressure without failure and is essential for ensuring the pipe’s suitability for specific applications.
HDPE PN 6 Meaning
- Definition: PN 6 meaning pressure nominal rating of 6 bar (6 times the atmospheric pressure).
- Applications: HDPE pipes with a PN 6 rating are typically used in low-pressure water distribution systems, such as irrigation and drainage. They are suitable for applications where the pressure is relatively low and consistent.
- Characteristics: These pipes are thicker than PN 4 pipes but thinner than higher PN rated pipes, providing a balance between flexibility and pressure resistance.
HDPE PN 8 Meaning
- Definition: PN 8 meaning pressure nominal rating of 8 bar.
- Applications: HDPE PN 8 pipes are commonly used in medium-pressure water supply systems, including rural water supply and agricultural irrigation. They can also be used for some industrial applications where the pressure requirements are moderate.
- Characteristics: The wall thickness of PN 8 pipes is designed to handle higher pressure than PN 6, making them suitable for more demanding applications while still maintaining flexibility.
HDPE PN 10 Meaning
- Definition: PN 10 meaning pressure nominal rating of 10 bar.
- Applications: These pipes are often used in high-pressure water distribution, potable water systems, and industrial pipelines. PN 10 HDPE pipes are also suitable for transporting certain chemicals and gases, depending on compatibility.
- Characteristics: With a thicker wall than PN 8 pipes, PN 10 pipes offer increased pressure resistance, making them a preferred choice for municipal water supply networks and high-pressure applications.
HDPE PN 12.5 Meaning
- Definition: PN 12.5 meaning pressure nominal rating of 12.5 bar.
- Applications: HDPE pipes with a PN 12.5 rating are ideal for higher-pressure water mains, industrial piping systems, and some chemical transport applications. They are often used in infrastructure projects where long-term durability and high-pressure tolerance are critical.
- Characteristics: PN 12.5 pipes have a thicker wall than PN 10 pipes, providing enhanced strength and pressure-handling capacity. This makes them suitable for more demanding environments and applications.
HDPE PN 16 Meaning
- Definition: PN 16 meaning is one of the highest-pressure nominal ratings, corresponding to 16 bar.
- Applications: HDPE PN 16 pipes are used in extremely high-pressure water distribution systems, including fire mains, high-pressure industrial applications, and long-distance water transportation. They are also suitable for specific chemical transportation applications.
- Characteristics: The walls of PN 16 pipes are significantly thicker than those of lower-rated pipes, providing maximum pressure resistance. This makes them ideal for applications where both strength and longevity are critical.
Choosing the Right HDPE Pipe for Your Project
PN Rating | Pressure Nominal (bar) | Applications | Characteristics |
PN 6 Meaning | 6 | – Low-pressure water distribution | – Thicker than PN 4 |
– Irrigation | – Suitable for low-pressure applications | ||
– Drainage | |||
PN 8 Meaning | 8 | – Medium-pressure water supply | – Handles higher pressure than PN 6 |
– Rural water supply | – Suitable for medium-pressure applications | ||
– Agricultural irrigation | |||
PN 10 Meaning | 10 | – High-pressure water distribution | – Thicker wall than PN 8 |
– Potable water systems | – Used for higher pressure and some chemical transport | ||
– Industrial pipelines | |||
PN 12.5 Meaning | 12.5 | – High-pressure water mains | – Greater wall thickness than PN 10 |
– Industrial piping | – Ideal for high-pressure and durable applications | ||
– Chemical transport | |||
PN 16 Meaning | 16 | – Extremely high-pressure water systems | – Thickest wall |
– Fire mains | – Maximum pressure resistance | ||
– Long-distance water transport | – Suitable for demanding environments |
Quiz on Factors influencing PN selection
1. Which factor involves determining the maximum and average operating pressures expected in the system?
Choose the correct answer:
Explanation: Operating Pressure involves determining the maximum and average operating pressures expected in the system. The selected PN rating should exceed these pressure requirements to ensure a safe and reliable piping system.
2. What should be considered regarding the fluid being transported through the HDPE pipe?
Choose the correct answer:
Explanation: Fluid Compatibility involves considering the nature of the fluid being transported through the HDPE pipe, including its temperature, viscosity, and corrosiveness, to select an appropriate PN rating.
Installation and Maintenance of HDPE Pipes
Proper installation and maintenance practices are essential for maximizing the performance and longevity of HDPE pipes. Here are some key considerations:
a) Preparation: Ensure the trench or area where the HDPE pipe will be installed is properly prepared, including appropriate bedding materials and compaction to provide a stable foundation.

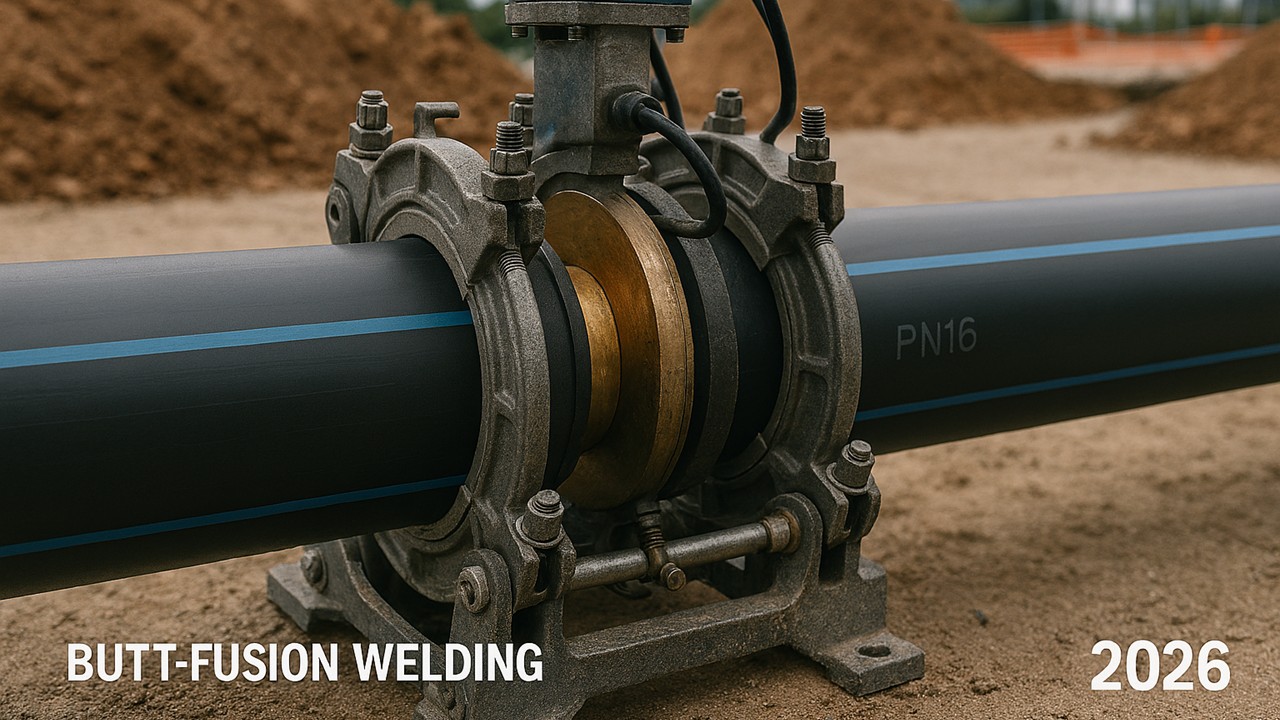

b) Fusion Welding: HDPE pipes are typically joined using fusion welding techniques, such as butt fusion or electrofusion. These methods create strong, leak-free joints that maintain the structural integrity of the piping system.
c) Handling and Transport: Handle HDPE pipes with care to avoid damage during transportation and installation. Protect the pipes from excessive bending, impact, and exposure to extreme temperatures.
d) Inspections and Testing: Conduct regular inspections and testing to identify any potential issues, such as leaks, joint integrity, or stress concentrations. This allows for timely maintenance and repairs, minimizing the risk of failures.
e) Training and Expertise: Ensure that the installation and maintenance personnel are properly trained and experienced in working with HDPE pipes. Adhering to manufacturer guidelines and industry best practices is crucial for the successful installation and long-term performance of the piping system.
Applications of HDPE Pipes
HDPE pipes find extensive use in various industries and applications due to their versatility and durability. Some common applications include:
a) Water Supply and Distribution: HDPE pipes are widely used in municipal water supply systems, including potable water distribution networks, water treatment plants, and firefighting systems.
b) Sewage and Drainage Systems: HDPE pipes provide effective and reliable solutions for sewage collection, stormwater management, and underground drainage systems.
c) Irrigation: HDPE pipes are ideal for agricultural irrigation systems due to their resistance to chemicals, UV rays, and abrasion. They ensure efficient water delivery to crops and reduce water wastage.
d) Gas Distribution: HDPE pipes are used for the distribution of natural gas and other gases, providing a safe and leak-free transportation system.
e) Industrial Applications: HDPE pipes are utilized in various industrial sectors, including mining, chemical processing, oil and gas, and power plants, for conveying fluids and chemicals.
HDPE Pipe Characteristics
Characteristic | Description | Benefits |
High Strength-to-Density Ratio | HDPE pipes are strong yet lightweight, providing durability without compromising flexibility. | Ideal for applications requiring robust materials that adapt to environmental conditions. |
Corrosion Resistance | Resistant to rust and corrosion from chemicals, moisture, and soil. | Perfect for underground installations and chemical processing industries, reducing long-term maintenance. |
Chemical Resistance | Offers excellent resistance to a wide range of chemicals, including acids, alkalis, and solvents. | Ensures long-term performance and reduces the need for frequent replacements, lowering maintenance costs. |
Flexibility and Ductility | HDPE pipes are flexible and can bend under stress without cracking or breaking. | Suitable for installations in areas prone to ground movement, ensuring reliability in dynamic conditions. |
Low Friction Coefficient | Smooth interior surface reduces resistance to fluid flow, enhancing efficiency. | Higher flow rates with less energy consumption, making operations more cost-effective. |
Long Service Life | Designed for a lifespan of 50 years or more under normal operating conditions. | Reduces the need for frequent replacements, lowering lifecycle costs and environmental impact. |
Resistance to UV and Weathering | HDPE pipes resist UV radiation and weathering, making them suitable for outdoor use. | Long-term durability in exposed environments, ensuring reliability in all weather conditions. |
Leak-Free Joints | Heat fusion joining creates strong, leak-free joints that are as robust as the pipe itself. | Minimizes water loss and maintenance costs, ensuring system integrity and reliability. |
Quiz on HDPE Pipe Characteristics
1. What makes HDPE pipes particularly suitable for underground installations?
Choose the correct answer:
Explanation: HDPE pipes are particularly suitable for underground installations due to their excellent corrosion resistance, which protects them from rust and degradation caused by soil and moisture.
2. How does the low friction coefficient of HDPE pipes benefit fluid transportation?
Choose the correct answer:
Explanation: The low friction coefficient of HDPE pipes ensures efficient fluid transportation by reducing resistance, leading to higher flow rates with less energy consumption.
3. What is a major advantage of the flexibility and ductility of HDPE pipes?
Choose the correct answer:
Explanation: The flexibility and ductility of HDPE pipes allow them to bend and flex under stress without cracking or breaking, making them ideal for installations requiring curved alignments or those prone to ground movement.
FAQs on HDPE Pipes
1. What is HDPE pipe?
Answer:
HDPE (High-Density Polyethylene) pipe is a flexible plastic pipe used for fluid and gas transfer. It is made from the thermoplastic HDPE and is known for its high strength-to-density ratio, durability, and resistance to corrosion, chemicals, and UV radiation.
2. What are the common applications of HDPE pipes?
Answer:
HDPE pipes are commonly used in water supply, gas distribution, sewage and wastewater, industrial applications, irrigation, and electrical and communication conduits.
3. What are the advantages of using HDPE pipes?
Answer:
The advantages of using HDPE pipes include:
- High resistance to corrosion and chemicals.
- Flexibility and toughness.
- Lightweight and easy to transport.
- Long service life (typically 50-100 years).
- Leak-proof joints due to fusion welding.
- Excellent flow characteristics due to smooth internal surfaces.
4. How are HDPE pipes joined together?
Answer:
HDPE pipes can be joined together using several methods, including:
- Butt fusion welding.
- Electro-fusion welding.
- Socket fusion welding.
- Mechanical fittings.
5. Can HDPE pipes be used for potable water supply?
Answer:
Yes, HDPE pipes are safe for potable water supply. They are made from non-toxic materials and are resistant to the growth of bacteria and other microorganisms.
6. What is the maximum operating temperature for HDPE pipes?
Answer:
The maximum operating temperature for HDPE pipes is generally around 140°F (60°C). For temperatures above this, special considerations and design adjustments need to be made.
7. How does HDPE pipe compare to PVC pipe?
Answer:
HDPE pipes and PVC pipes have different properties and applications. HDPE pipes are more flexible, have higher impact resistance, and are better suited for trenchless installation methods. PVC pipes, on the other hand, are more rigid, have a higher pressure rating, and are often used in gravity-fed water and sewer systems.
8. What are the installation methods for HDPE pipes?
Answer:
HDPE pipes can be installed using various methods, including:
- Open trench installation.
- Horizontal directional drilling (HDD).
- Pipe bursting.
- Slip lining.
- Plowing.
FAQs on HDPE PN Ratings
1. What is the meaning of HDPE PN 6?
- Answer: HDPE PN 6 refers to a High-Density Polyethylene (HDPE) pipe that is rated to withstand a pressure of 6 bar. This rating means that the pipe can handle up to 6 times the atmospheric pressure. HDPE PN 6 pipes are commonly used in low-pressure applications like irrigation and drainage.
2. What is the meaning of HDPE PN 10, and where is it used?
- Answer: HDPE PN 10 pipes are designed to withstand a pressure of 10 bar. This makes them suitable for higher-pressure applications, including potable water distribution, municipal water supply systems, and certain industrial processes. The HDPE PN 10 meaning indicates that the pipe can handle significant internal pressure while maintaining durability.
3. Can you explain the meaning and applications of HDPE PN 12.5?
- Answer: HDPE PN 12.5 pipes are rated to handle a pressure of 12.5 bar. This higher pressure rating is ideal for more demanding applications such as water mains, industrial piping, and some chemical transport systems. The HDPE PN 12.5 meaning signifies that these pipes offer increased strength and durability for high-pressure environments.
4. What does HDPE PN 16 mean, and when should it be used?
- Answer: HDPE PN 16 pipes have a pressure rating of 16 bar, making them suitable for extremely high-pressure applications like fire mains, long-distance water transportation, and high-pressure industrial systems. The HDPE PN 16 meaning indicates that these pipes have thicker walls and are designed for maximum pressure resistance and longevity.
5. How do the meanings of HDPE PN 6, PN 10, PN 12.5, and PN 16 compare?
Answer: The HDPE PN 6 meaning indicates a pipe suitable for low-pressure applications, while the HDPE PN 10 meaning denotes a pipe that can handle higher pressure. The HDPE PN 12.5 meaning refers to pipes used in even more demanding, high-pressure environments. Finally, the HDPE PN 16 meaning is associated with pipes that can withstand the highest pressures, making them ideal for the most critical applications.
25+ Relevant topics on Codes & Standards
Recommended courses (Published on EPCLand)
- Complete Course on Piping Engineering
- Basics of Piping Engineering
- Piping Layout Engineering
- Piping Material Engineering
- Piping Stress Analysis
- Material Requisitions & TBE
- Piping Material Specifications
- Valve Material Specifications
- Plant Design & Layouts-OISD 118
- Isometric Management
Other relevant Links:
- Click here to check the published courses on Piping Engineering
- Click here to attempt Quizzes on Piping Engineering Topics
- Click here to check 1200+ Videos on Piping Engineering
- Click here to Join the Telegram Community of Piping Professionals
- Click here to Prepare for PMP (Project Management Professionals) for Free
Conclusion
HDPE pipes offer significant advantages over traditional piping materials, making them a preferred choice in a wide range of applications. Understanding the concept of PN in HDPE pipes is crucial for selecting the appropriate pipe that can withstand the expected operating pressures. Consideration of factors such as operating conditions, fluid compatibility, and environmental factors is essential for making informed decisions. By adhering to proper installation and maintenance practices, HDPE pipes can deliver reliable and efficient performance, contributing to sustainable and robust infrastructure systems.
