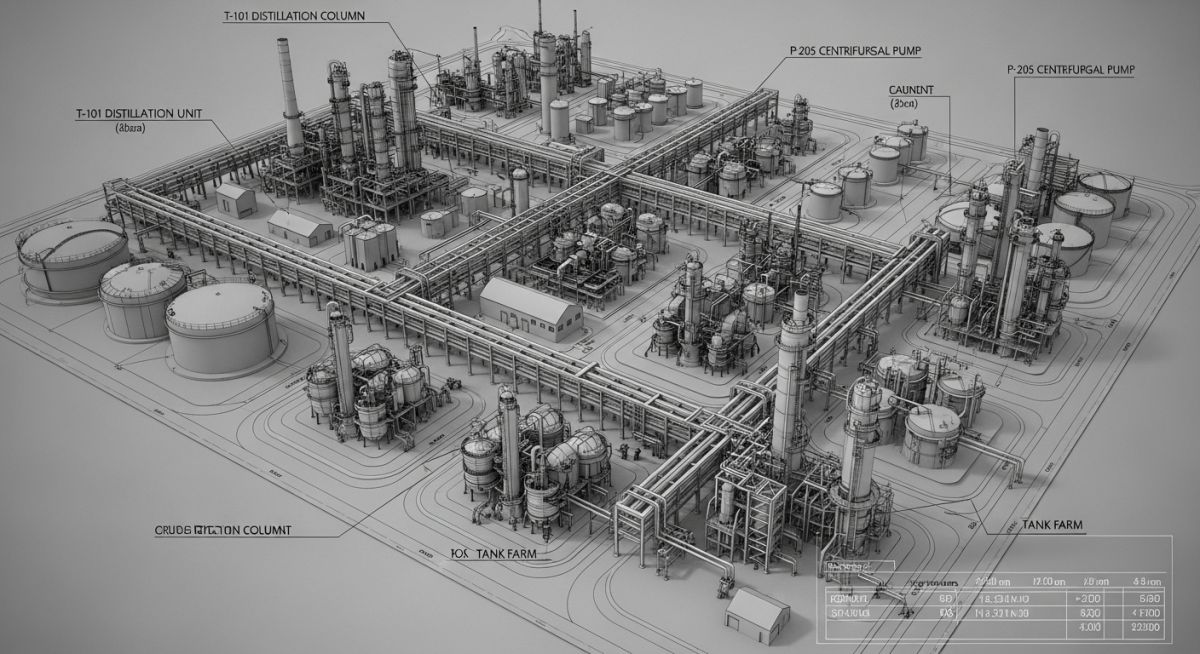

Verified Engineering Content Updated: 2026 The Ultimate Guide to Plot Plan Drawing Optimization in 2026 Imagine standing at the edge of a multi-billion dollar brownfield site with a massive 200-ton distillation column arriving in 48 hours, only to realize your crane reach is blocked by a permanent piperack support. This nightmare scenario is exactly what a precision-engineered Plot Plan Drawing prevents. It is the master blueprint that governs the spatial heartbeat of a plant, turning chaotic equipment lists into a high-performance industrial machine. What You Will Master: ✔️ The Plot Plan Drawing serves as the primary document for defining battery limits and equipment coordinates. ✔️ Integration of ASME and API spacing standards to ensure operational safety and maintenance access. ✔️ Optimization of piping runs and civil grading through effective spatial planning and orientation. What is a Plot Plan Drawing? A Plot Plan Drawing is a master engineering document providing a top-down view of a facility's layout. It defines the precise location, coordinates, and orientation of equipment, structures, and piperacks. It establishes battery limits, ensures safety clearances per standards like NFPA, and facilitates efficient construction and maintenance workflows. "In my two decades of plant design, I've seen projects fail not because of thermodynamics, but because of poor spatial coordination. A Plot Plan Drawing isn't just a map; it's a strategic asset that dictates 70% of your piping costs and 100% of your maintenance accessibility." — Atul Singla, Founder Table of Contents 1. Comprehensive Definition 2. Industrial Applications 3. Primary Drawing Formats 4. Essential Engineering Inputs 5. Technical Information Details 6. Engineering Workflow 7. Expert Peer Review Plot Plan Engineering IQ Test Validate your expertise in industrial spatial design 1 / 5 Which standard primarily governs the safety spacing distances on a Plot Plan Drawing for oil and gas facilities? A) NFPA 30 / API RP 752 B) ASME B31.3 C) ASME B16.5 Next Question → 2 / 5 What does a 'Battery Limit' line signify on a Plot Plan Drawing? A) The physical width of a piperack B) The boundary of a specific process area C) The legal property line only Next Question → 3 / 5 The primary North used on an engineering Plot Plan Drawing is typically: A) Magnetic North B) Plant North (Project North) C) True North exclusively Next Question → 4 / 5 Which engineering input is essential for determining equipment elevation on the Plot Plan? A) Process Data Sheets (NPSH requirements) B) Pipe Support Standard C) Vendor General Arrangement only Next Question → 5 / 5 What is the main purpose of a 'Key Plan' within a Plot Plan Drawing set? A) To show the drawing location in relation to the whole site B) To list the coordinate abbreviations C) To track revision changes Complete Quiz Quiz Complete! You have mastered the fundamentals of the Plot Plan Drawing. Restart Quiz Comprehensive Definition of a Plot Plan Drawing In the sophisticated realm of industrial architecture, a Plot Plan Drawing serves as the definitive spatial constitution for any process facility. Unlike a simple architectural site plan, this engineering document is a precision-scaled 2D representation that dictates the absolute coordinates (Eastings and Northings) for every piece of static and rotary equipment. It integrates complex multi-disciplinary data, ensuring that the physical arrangement adheres to stringent safety codes such as API RP 752 for building locations and NFPA 30 for tank storage. By establishing the Plot Plan Drawing early in the Front-End Engineering Design (FEED) phase, engineers create a frozen layout that governs the downstream development of piping isometrics, civil foundation designs, and electrical cable tray routing. The Plot Plan Drawing is essentially a top-down "map" of the plant's "Battery Limit"—a designated boundary that separates specific process units from the rest of the facility or offsite utilities. It is the primary tool used by Piping Lead Engineers to minimize "pipe rack congestion" and optimize the "NPSH" (Net Positive Suction Head) available for pumps by strategically placing vessels and tanks. For a deep dive into the regulatory framework governing these layouts, engineers frequently reference the ASME Official Standards to ensure structural and pressure integrity across the plant footprint. Industrial Applications of Plot Plan Drawing Design The application of a Plot Plan Drawing extends far beyond simple equipment placement; it is a live document used throughout the entire project lifecycle. During the Construction Phase, the plot plan is utilized for "Heavy Lift" planning, identifying where cranes can be positioned without compromising underground utilities or existing foundations. In Operational Phases, it serves as the master reference for Emergency Response Plans (ERP), highlighting muster points, fire hydrant locations, and hazardous zone classifications (Hazardous Area Classification). Furthermore, in "Brownfield" projects (modifying existing plants), the Plot Plan Drawing is critical for "Tie-in" management. It allows engineers to visualize how new equipment modules will interface with legacy systems without causing physical clashes. By utilizing Plot Plan Drawing strategies, EPC (Engineering, Procurement, and Construction) firms can significantly reduce field rework, which often accounts for up to 15% of total project cost overruns. Primary Types of Plot Plan Drawing Formats Depending on the project stage and detail required, a Plot Plan Drawing usually manifests in three distinct formats: Overall Plot Plan: A macro-level view showing the entire site, including administrative buildings, flare stacks, tank farms, and main access roads. Unit Plot Plan: A micro-level detailed drawing of a specific process unit (e.g., a Crude Distillation Unit) within the battery limits, showing individual pump coordinates and nozzle orientations. Conceptual Plot Plan: Developed during the feasibility study to estimate the required land acreage and preliminary environmental impact. Essential Engineering Inputs for Plot Plan Drawing Development The development of a high-fidelity Plot Plan Drawing is a multidisciplinary synthesis. It cannot be created in isolation; rather, it requires a "frozen" set of data from process, civil, and mechanical teams. The most critical input is the Piping and Instrumentation Diagram (P&ID), which dictates the functional relationship between equipment. For instance, gravity-flow lines identified in the P&ID necessitate specific elevation differentials that must be captured in the Plot Plan Drawing coordinates. Furthermore, Process Data Sheets provide the physical dimensions and weights of equipment, while the Hazardous Area Classification schedule informs the mandatory separation distances required by API RP 500. Failure to integrate these inputs early results in "Layout Recycles," where piping must be rerouted late in the design phase, exponentially increasing costs. To verify specific spacing requirements for fire safety, engineers often consult the NFPA Official Standards to ensure legal compliance. Key Technical Information Contained in a Plot Plan Drawing A standard Plot Plan Drawing is a dense information hub. It must contain the following "Non-Negotiables" to be considered a construction-ready document: Component Technical Requirement Governing Standard Equipment Coordinates Centerline (C/L) of vessels and pumps based on Plant North. ISO 15519 Safety Distances Clearance between high-pressure units and ignition sources. API RP 752 / NFPA 30 Battery Limits Geographic boundary lines for contractual scope. Project Spec Access Roads Minimum 6m width for fire tender access. OSHA 1910 Engineering Workflow: Finalizing the Plot Plan Drawing The workflow for a Plot Plan Drawing typically follows a "Check-Review-Approve" cycle. Once the initial layout is drafted, it undergoes a Constructability Review where field experts simulate equipment installation using crane radius charts. Following this, a 30% Model Review (in tools like SP3D or E3D) ensures that the 2D Plot Plan Drawing matches the 3D reality. This rigorous process minimizes the risk of interferences between structural steel and piping headers. Equipment Spacing & Plot Area Estimator Based on API RP 752 / NFPA 30 Safety Guidelines for Plot Plan Drawing planning. Primary Equipment Type Atmospheric Storage Tank (NFPA 30) High-Pressure Vessel (Process) Fired Heater / Furnace Centrifugal Pump / Compressor Number of Major Units Safety Buffer Multiplier 1.2x Buffer Avg. Footprint Per Unit (m2) Calculated Plot Requirement Calculate Area Total Clear Area 0.00 Square Meters (m2) Min. Separation Zone 0.00 Meters (Linear) *Disclaimer: This tool provides preliminary estimates for Plot Plan Drawing feasibility studies only. Final spacing must be verified against site-specific HAZOP studies and local fire codes. Engineering Case Study: Brownfield Debottlenecking The Challenge An aging refinery needed to integrate a new Plot Plan Drawing for a modular Hydrogen Recovery Unit within a 20m x 30m congested corridor. The Constraints Existing underground high-voltage cables and overhead 30-inch steam headers limited heavy crane access and foundation depth. The Solution A 3D laser-scanned Plot Plan Drawing was generated to identify "Clash-Free" zones for modular skid placement and crane outrigger pads. Technical Execution & Results By utilizing a high-fidelity Plot Plan Drawing, the engineering team successfully reduced the piping spool count by 12% through vertical stacking of heat exchangers. The drawing served as the primary coordination tool for the "Heavy Lift" plan, ensuring that the 150-ton module was placed within 5mm of the design coordinates without disturbing the adjacent live unit. 💡 Key Outcome: Zero field clashes during the 48-hour shutdown window, saving an estimated $1.2 Million in potential downtime penalties. Don't miss this video related to Plot Plan Summary: Master Piping Engineering with our complete 125+ hour Certification Course: ...... ✅ 2500+ VIDEOS View Playlists → JOIN EXCLUSIVE EDUCATION SUBSCRIBE Expert Insights: Lessons from 20 years in the field Prioritize "Maintenance Envelopes" Over Footprints A common rookie mistake is drafting a Plot Plan Drawing based only on equipment dimensions. Always include "Tube Bundle Pulling" space for exchangers and "Rotors Removal" zones for compressors. If it's not on the drawing, civil will put a pedestal there, and you'll be chipping concrete in three years. Wind Direction is a Safety Constraint Never place a Fired Heater downwind of a Hydrocarbon Pump row. Your Plot Plan Drawing must align the "Prevailing Wind" arrow so that potential leaks are carried away from ignition sources, adhering to API RP 752 siting philosophies. Standardize Coordinate Grids Early Ensure the Plot Plan Drawing uses the "Global Project Coordinate System" from day one. Converting local plant grids to global coordinates mid-project is the fastest way to introduce 500mm errors in piping tie-ins. References & Standards 🔗 API RP 752: Management of Hazards 🔗 NFPA 30: Flammable Liquids Code 🔗 ASME B31.3: Process Piping Design 🔗 ISO 15519: Diagrams for Process Industry Frequently Asked Questions: Plot Plan Drawing What are the primary objectives of a Plot Plan Drawing? The primary objectives are to minimize investment costs by optimizing pipe runs, ensure safety through regulated equipment spacing, facilitate easy maintenance access, and provide a clear topographical map for construction and future expansions. How does a Plot Plan Drawing differ from a Site Plan? A Site Plan covers the entire property including legal boundaries and civil features. A Plot Plan Drawing is a specialized engineering document focused on the precise coordinate-based placement of industrial process equipment, piperacks, and technical infrastructure within those boundaries. At what project stage is the Plot Plan Drawing finalized? Initial layouts start during the conceptual stage, but the "Approved for Construction" (AFC) Plot Plan Drawing is typically finalized at the end of the Front-End Engineering Design (FEED) or early in the Detailed Engineering phase. Why must the Plot Plan Drawing consider the "Prevailing Wind"? This is a critical safety requirement. Ignition sources (like furnaces) should be located upwind of potential hydrocarbon leak sources (like pumps) to prevent flammable gas clouds from drifting into a flame and causing an explosion. What happens if a Plot Plan Drawing ignores "Tube Bundle Pulling"? If the Plot Plan Drawing fails to reserve space for maintenance, you will find it impossible to clean or repair heat exchangers. This often leads to expensive plant shutdowns or the need to demolish nearby structures to create temporary access. Can I use GPS coordinates directly on a Unit Plot Plan? While the Overall Site Plan uses Global GPS coordinates, individual Plot Plan Drawing sheets usually use a "Plant Grid" system. This simplifies the math for construction crews and piping designers by setting a 0,0 datum point at a specific corner of the unit. 📚 Recommended Resources: Plot Plan Read these Guides 📄 Plot Plan: Definitions & Its Stages: Piping Quiz 📄 Overall & Unit Plot Plan: Piping Engineering (With FAQs) 📄 Plot Plan Development 📄 3D Model Review Guide: Mastering 30%, 60%, and 90% Stages (2026) 🎓 Advanced Training 🏆 Complete Course on Piping Engineering 🏆 Underground Piping & Networks – Design, Layout & Safety 🎥 Watch Tutorials FAQs: Plot Plan in Piping Engineering: Everything You Need to Know Promo II 10 of 21 II Overall & Unit plot plan II Certification Course II Piping 5.1 Unit plot plan: Definitions & Various stages!!! Piping Engineering!! Piping Layouts!!
