Introduction
Steel weldability is a vital concern for industries that rely on welding to fabricate structural components, pressure vessels, pipelines, and other critical applications. One of the most important metrics used to determine the weldability of steel is the Carbon Equivalent (CE). This parameter is a simplified way to assess the impact of various alloying elements on the steel’s hardenability during welding, directly influencing its susceptibility to cracking and other defects. In this comprehensive guide, we’ll delve into the concept of the carbon equivalent, explain its formulas, and discuss its implications on preheating, cracking risks, and overall weld quality.
- Introduction
- Quiz on Carbon Equivalent
- What is the Carbon Equivalent (CE)?
- Understanding Weldability
- Common Carbon Equivalent Formulas
- How CE Affects Preheat and Welding Parameters
- CE and Risk of Cracking
- Controlling CE and Improving Weldability
- Summary of CE’s Impact on Welding
- FAQs
- Important Links
- Check 75+ Free Courses on EPCLAND
Quiz on Carbon Equivalent
1. What is the Carbon Equivalent (CE) used to assess in steel?
Choose the correct answer:
Correct Answer: B) The weldability of steel.
Explanation: The Carbon Equivalent (CE) is a key metric used to determine the weldability of steel, which is its ability to be welded without issues like cracking or distortion. CE reflects how alloying elements, especially carbon, affect the steel’s tendency to harden during welding, and therefore its susceptibility to cracking.
2. Which of the following elements is included in the American Welding Society (AWS) formula for calculating CE?
Choose the correct answer:
Correct Answer: A) Silicon.
Explanation: The American Welding Society (AWS) formula includes silicon as a hardening element when calculating the Carbon Equivalent. This makes it different from the International Institute of Welding (IIW) formula, which excludes silicon. The inclusion of silicon in the AWS formula helps provide a more accurate estimate of steel’s hardening behavior during welding.
3. What does a higher CE value generally indicate in terms of weldability?
Choose the correct answer:
Correct Answer: B) Greater propensity for hardening and cracking.
Explanation: A higher CE value indicates a higher likelihood of hardening during the welding process, which increases the risk of cracking. This is why steels with high CE values often require preheating to slow down the cooling process and reduce the chances of rapid cooling-induced hardening.
4. Why is preheating often necessary for steels with high CE values before welding?
Choose the correct answer:
Correct Answer: C) To control the cooling rate and reduce the risk of cracking.
Explanation: Preheating is necessary for steels with high CE values because it helps slow down the cooling process after welding. This controlled cooling reduces the chances of rapid hardening, which can lead to cracking. Preheat also ensures the material stays ductile and minimizes distortion during welding.
What is the Carbon Equivalent (CE)?
The Carbon Equivalent is a numerical value that combines the influence of carbon and other alloying elements on steel’s weldability. Higher CE values indicate increased hardenability, which may result in cracking if not managed carefully. The carbon equivalent method offers a standardized way to predict how certain elements—carbon, manganese, silicon, chromium, and others—affect the steel’s behavior during welding.
Importance of Carbon Equivalent in Welding
- Hardening Risk: Steels with higher CE are more prone to hardening during rapid cooling, making them susceptible to cracking.
- Weldability Prediction: By calculating the CE, engineers can predict the steel’s weldability and adjust their welding process accordingly.
- Preheating Necessity: When CE exceeds certain thresholds, preheating becomes essential to control the cooling rate and reduce the risk of weld defects.
Understanding Weldability
Weldability refers to how easily a material can be welded, taking into account not only the ability to create a sound weld joint but also the material’s performance under service conditions. For steel, weldability is impacted by its chemical composition, especially the presence of alloying elements. These elements influence the steel’s mechanical properties, such as strength, hardness, and toughness.
- Preheat Requirements: Steels with poor weldability often require preheating to avoid cracking.
- Cooling Rate Control: Proper control of cooling rates is crucial to ensure the steel does not harden excessively after welding.
- Application Suitability: Weldable materials are those that can be fabricated using welding and will function adequately in their intended application.
Factors Affecting Weldability
- Chemical Composition: Carbon and other alloying elements like manganese, chromium, and silicon directly affect weldability.
- Thermal Conductivity: Materials with low thermal conductivity retain heat longer, affecting the cooling rate and weld quality.
- Mechanical Properties: The material’s strength, ductility, and toughness determine its ability to resist cracking during welding.
Common Carbon Equivalent Formulas
To calculate the carbon equivalent, engineers typically use one of several recognized formulas. These formulas combine the effects of carbon with other alloying elements to produce a CE value, which then indicates the steel’s weldability.
American Welding Society (AWS) Formula
The AWS formula incorporates silicon as a hardening element, making it slightly different from other CE formulas. It is often used for general welding applications in structural and pressure-containing steel components.
Where:
- C = Carbon
- Mn = Manganese
- Cr = Chromium
- Mo = Molybdenum
- V = Vanadium
- Ni = Nickel
- Cu = Copper
International Institute of Welding (IIW) Formula
The IIW formula is another widely recognized CE formula, often used for pressure vessels and pipeline applications. Unlike the AWS formula, the IIW formula does not include silicon.
This formula provides a more conservative assessment of hardenability since it excludes silicon, which plays a role in increasing hardness during cooling.
Differences Between AWS and IIW Formulas
- AWS Formula: Includes silicon, making it more comprehensive for applications where silicon’s hardening effects are critical.
- IIW Formula: Excludes silicon, offering a more conservative approach for critical applications like pipelines and pressure vessels.
How CE Affects Preheat and Welding Parameters
One of the most critical applications of the carbon equivalent method is determining when preheating is necessary. Preheating slows the cooling rate after welding, allowing for more uniform cooling and reducing the risk of hardening, which can cause cracking.

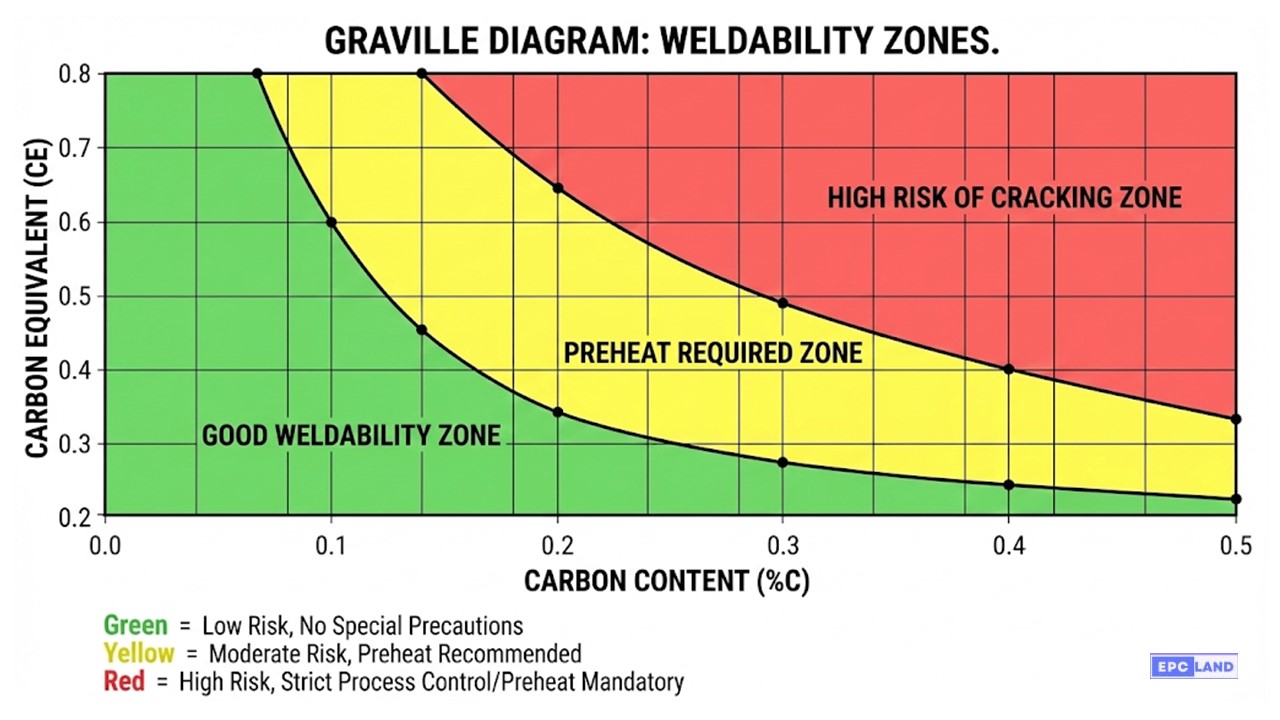

CE and Preheat Guidelines
- Low CE (<0.40): Generally, steels with a CE below 0.40 have excellent weldability and do not require preheating.
- Medium CE (0.40-0.60): Steels in this range may require moderate preheating, depending on the thickness and type of welding being performed.
- High CE (>0.60): For steels with a CE above 0.60, preheating is essential to prevent rapid cooling and excessive hardening, which can lead to cracks.
Preheat Recommendations Table
| CE Value Range | Weldability | Preheat Required | Preheat Temperature (°C) |
|---|---|---|---|
| < 0.40 | Excellent | Not Required | N/A |
| 0.40 – 0.60 | Moderate | May Be Required | 100 – 150 |
| > 0.60 | Poor | Required | 150 – 250 |
Factors Influencing Preheat Decisions
- Material Thickness: Thicker materials require higher preheat temperatures to ensure the entire weld zone cools uniformly.
- Joint Type: Butt joints, lap joints, and T-joints may have different cooling rates and therefore require different preheating techniques.
- Welding Process: Manual processes like SMAW (Shielded Metal Arc Welding) may need more preheat compared to automated processes like GMAW (Gas Metal Arc Welding).
CE and Risk of Cracking
Cracking is one of the most significant issues associated with welding steels with a high carbon equivalent. There are several types of cracks that can form during or after welding, and understanding how CE impacts these cracking mechanisms is crucial to prevent failures.
Types of Cracking Related to CE

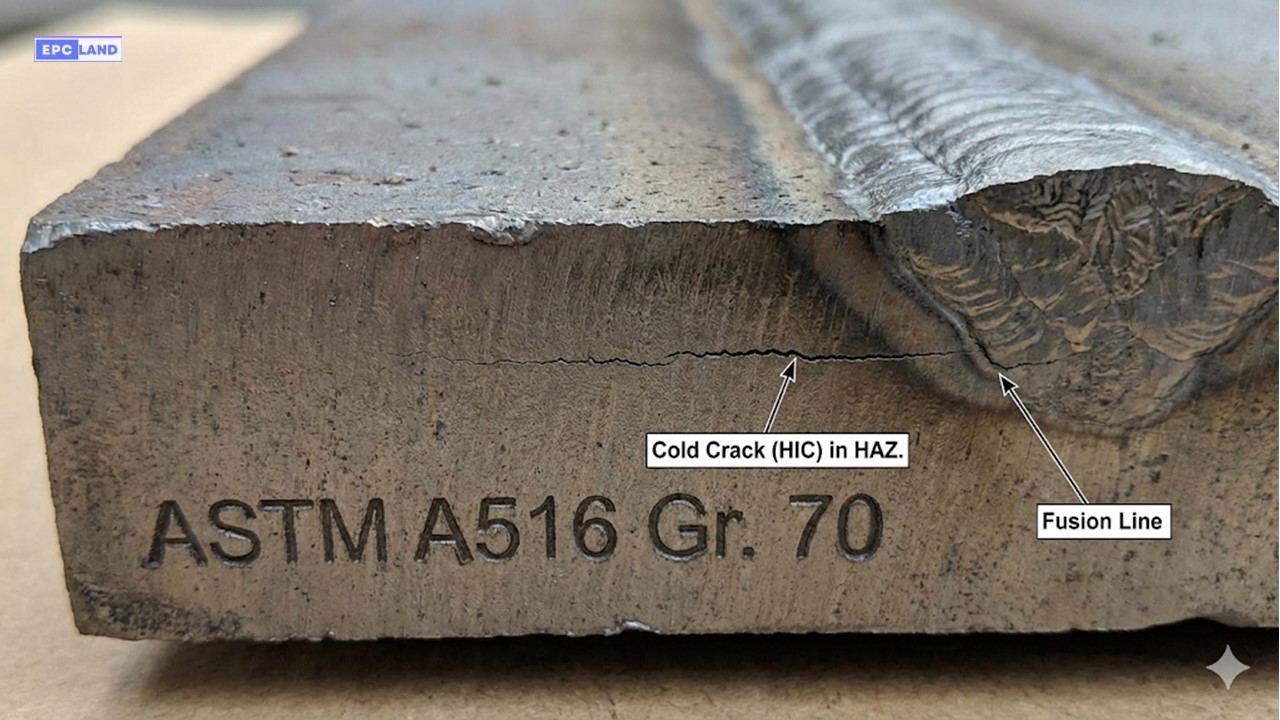

- Cold Cracking: Also known as hydrogen-induced cracking, this occurs when hydrogen becomes trapped in the weld metal during solidification. High CE steels are more susceptible to this because of their increased hardness and brittleness.
- Hot Cracking: This type of cracking occurs during the cooling of the weld metal and is more likely in steels with higher CE due to the complex interaction of alloying elements.
- Heat-Affected Zone (HAZ) Cracking: The area near the weld joint, called the HAZ, is particularly vulnerable to cracking, especially in steels with a high CE. Proper preheating and post-weld heat treatment (PWHT) are often required to minimize this risk.
Controlling CE and Improving Weldability
Welding steels with a high carbon equivalent presents challenges, but they can be managed through proper techniques and controls. By understanding how to manage the CE, engineers can significantly improve the overall quality of welded joints.
Methods to Improve Weldability
- Preheating: Ensures uniform cooling and reduces hardening tendencies, especially in steels with high CE.
- Low-Hydrogen Electrodes: Using low-hydrogen electrodes in the welding process helps prevent hydrogen-induced cracking.
- Post-Weld Heat Treatment (PWHT): For steels with very high CE, PWHT can help relieve internal stresses and reduce the risk of cracking.
- Controlled Cooling: Proper control of the cooling rate after welding helps to mitigate the hardening effects of CE.
Selecting Welding Consumables Based on CE
The choice of welding consumables, such as electrodes and filler materials, plays a critical role in managing weldability. For steels with a high CE, low-hydrogen consumables are preferred to reduce the risk of hydrogen-induced cracking.
Summary of CE’s Impact on Welding
The carbon equivalent is an essential tool for determining steel’s weldability, particularly for projects where welding quality is critical. By understanding CE formulas, welders and engineers can better predict how a material will behave during welding, select the appropriate preheat temperatures, and choose the correct welding consumables. Managing CE ensures high-quality welds with minimal defects and extended service life.
Key Takeaways
- The carbon equivalent (CE) is a crucial metric for assessing steel’s weldability.
- Higher CE values increase the risk of hardening and cracking during welding.
- Preheating is often required for steels with high CE values to prevent rapid cooling and defects.
- AWS and IIW formulas are commonly used to calculate CE and predict weldability.
- Proper control of preheat, welding consumables, and cooling rates is essential for high-quality welds.
FAQs
- What is carbon equivalent in welding?
The carbon equivalent (CE) is a formula used to assess the weldability of steel by considering the combined effect of carbon and other alloying elements on hardenability during welding. - Why is preheating necessary for high CE steels?
Preheating helps slow the cooling rate of the weld, reducing the risk of cracking in steels with high carbon equivalent values. - How is the carbon equivalent calculated?
CE can be calculated using various formulas, such as the AWS and IIW formulas, which combine the influence of carbon and other alloying elements to predict steel’s weldability. - What is the difference between the AWS and IIW carbon equivalent formulas?
The AWS formula includes silicon as a hardening element, while the IIW formula does not, offering a more conservative approach. - What are the effects of a high carbon equivalent on welding?
A high CE increases the steel’s tendency to harden during welding, making it more prone to cracking and defects if not properly managed.
